Volkswagen Teramont /Passat/T-Roc car wireless charger refit plan

1. Modification purpose

The Volkswagen car series is famous for studying Chinese people, so each car series mainly uses dolls, and has long occupied the market share of mid-range cars. Whether it is domestic or foreign, the market is very large, and car owners have a great demand for wireless charging. In order to meet the needs of car owners for wireless charging, our company developed this model in the early stage.

2. Modification method

Replace the blank board of the original car storage box without affecting the integrity and cleanliness of the original car. It is built according to the original car size.

3. Modification effect

To achieve true wireless charging, there is no line in sight. And realize the mobile phone fast charging experience

4. Modification steps

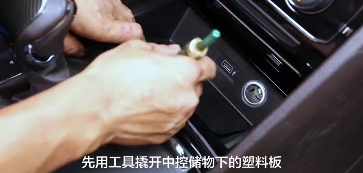

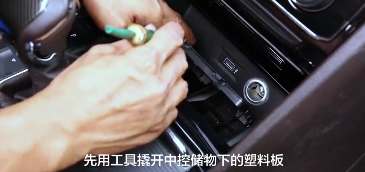

Step 1 First use a tool to pry open the plastic plate under the central control storage

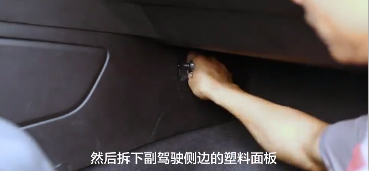

Step 2 Then remove the plastic panel on the side of the co-pilot

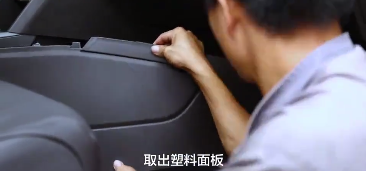

Step 3 Take out the plastic panel

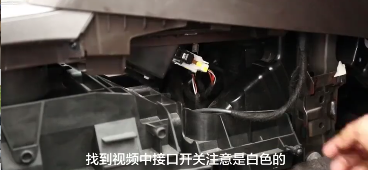

Step 4 Find the interface switch in the video and notice that it is white

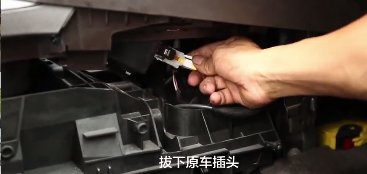

Step 5 Unplug the original car

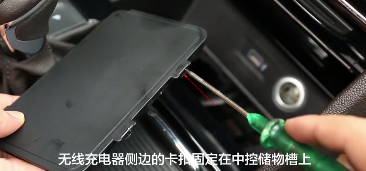

Step 6 The buckle on the side of the wireless charger is fixed on the central control storage slot

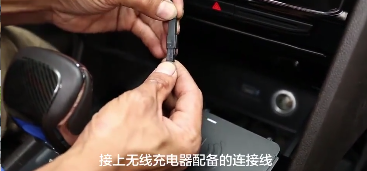

Step 7 Connect the cable that comes with the wireless charger

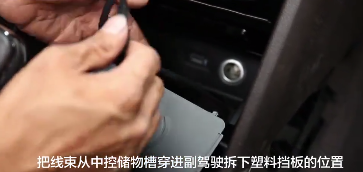

Step 7 Pass the wiring harness from the central control storage slot into the position where the co-pilot removed the plastic baffle

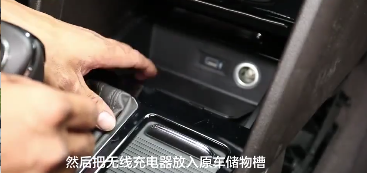

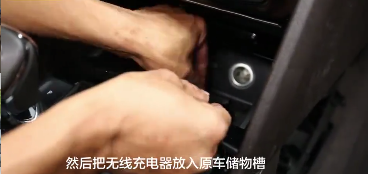

Step 8 Then put the wireless charger into the storage slot of the original car

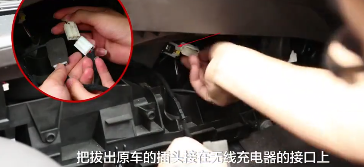

Step 9 Connect the plug of the original car to the port of the wireless charger

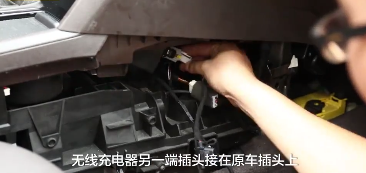

Step 10 Connect the other end of the wireless charger to the original car plug

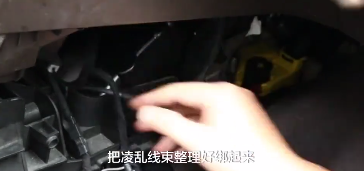

Step 11 Tie up the messy wiring harness

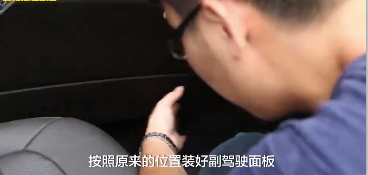

Step 12 Install the co-pilot panel in its original position
