Ford 18year Mondeo car wireless charger refit plan

1. Modification purpose

Ford Mondeo has long occupied the mid-range car market share, and car owners have a great demand for wireless charging. In order to meet the needs of car owners for wireless charging, our company developed this model in the early stage.

2. Modification method

Replace the original car storage box cushion without affecting the integrity and cleanliness of the original car. It is built according to the original car size.

3. Modification effect

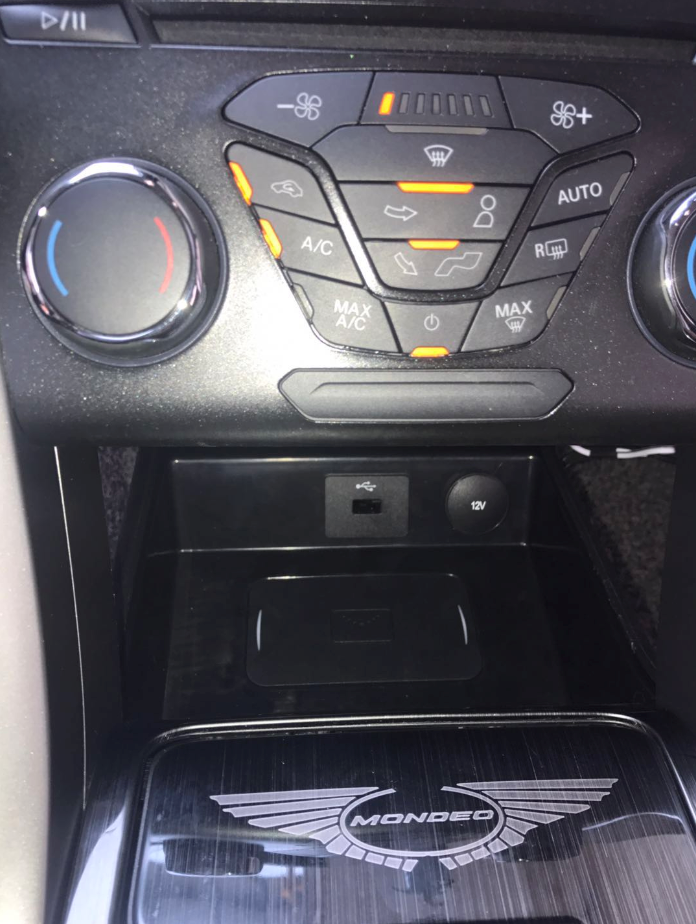

To achieve true wireless charging, there is no line in sight. And realize the mobile phone fast charging experience.

4. Modification steps

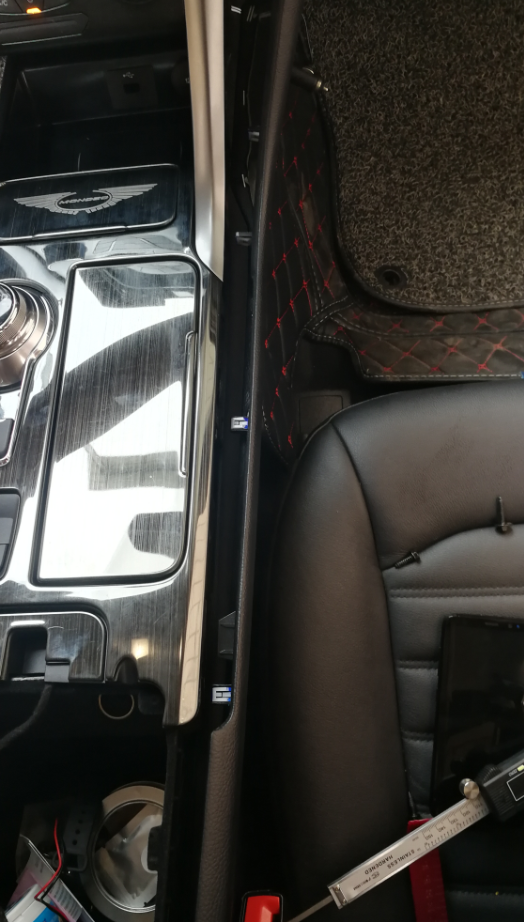

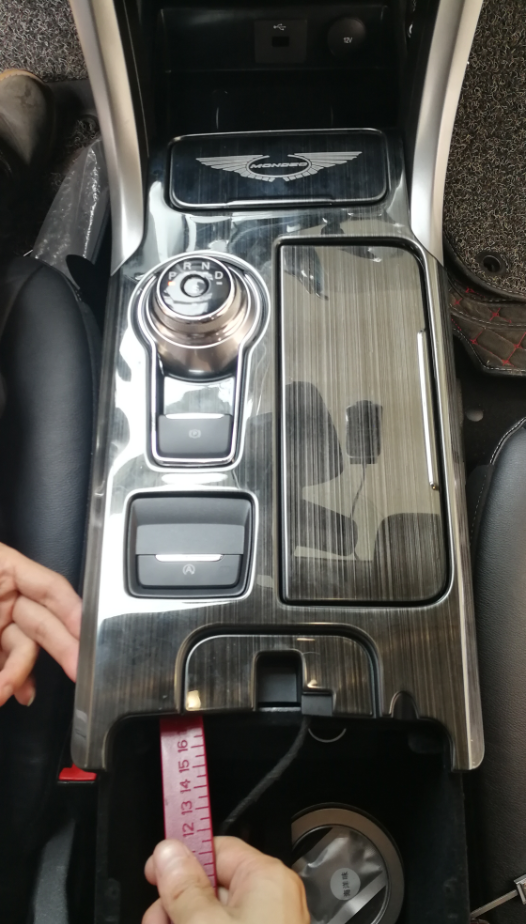

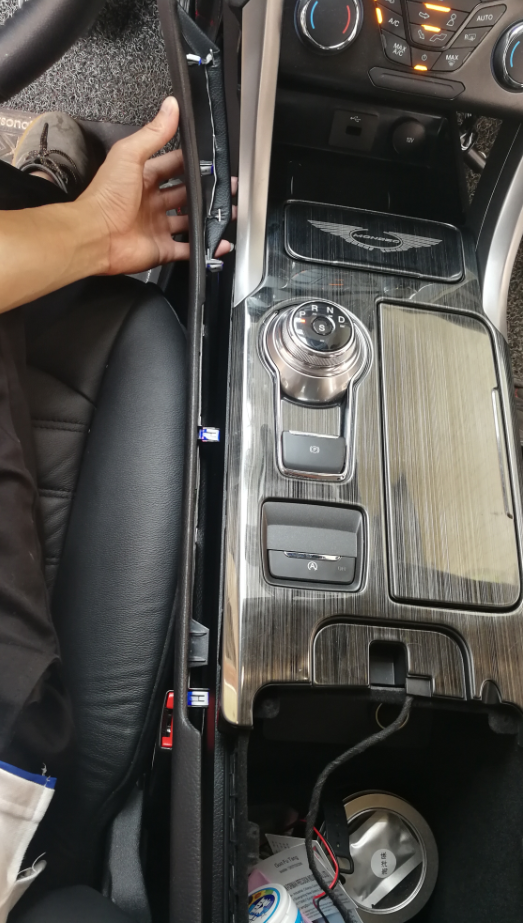

Step 1 Disassemble both sides

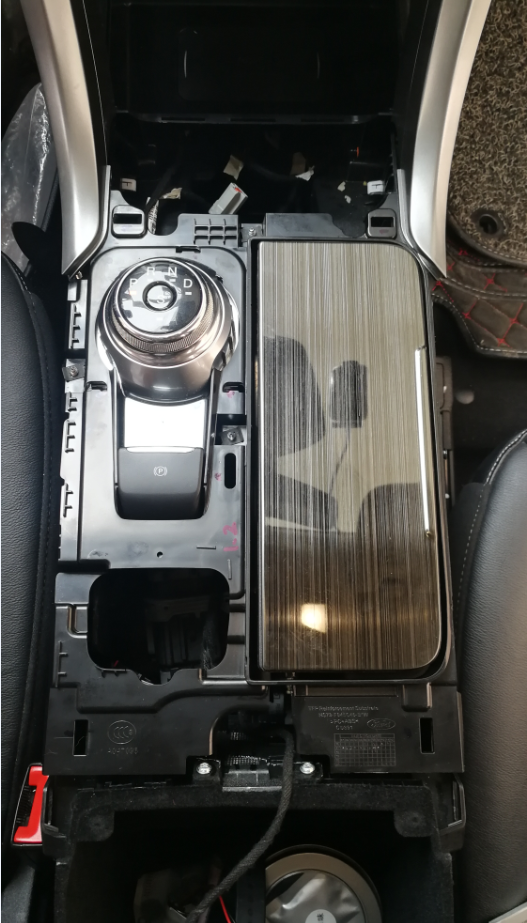

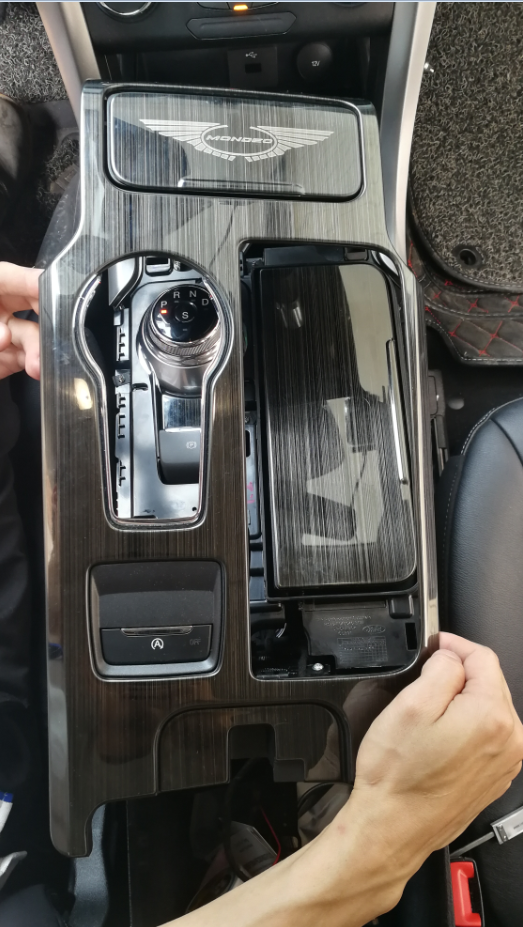

Step 2 Open the gear panel and take it out

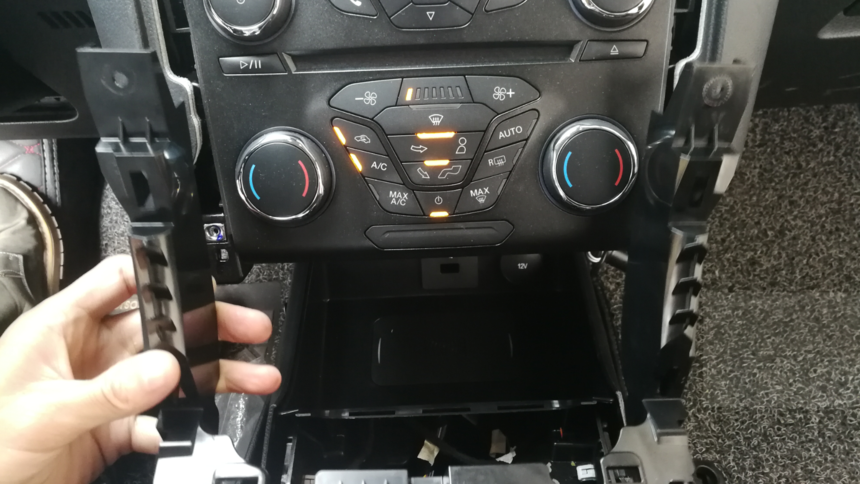

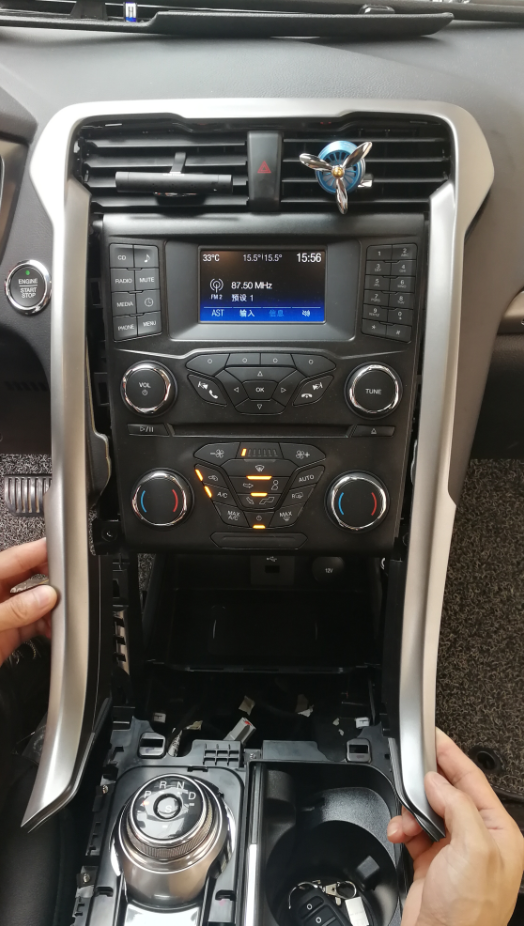

Step 3 Remove the decorative strips on both sides

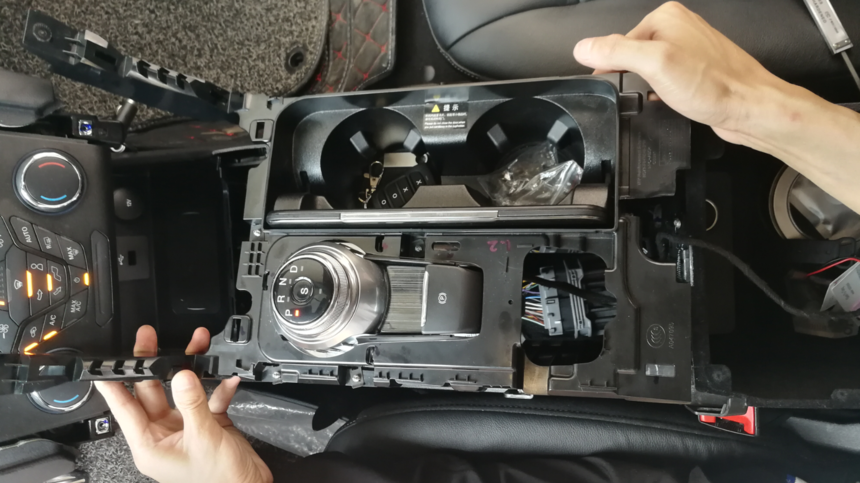

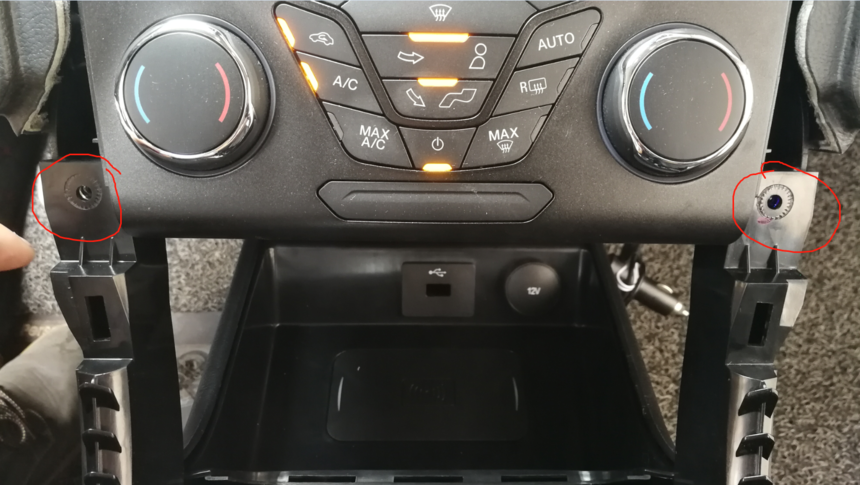

Step 4 Unscrew the screws on both sides and remove the cup holder

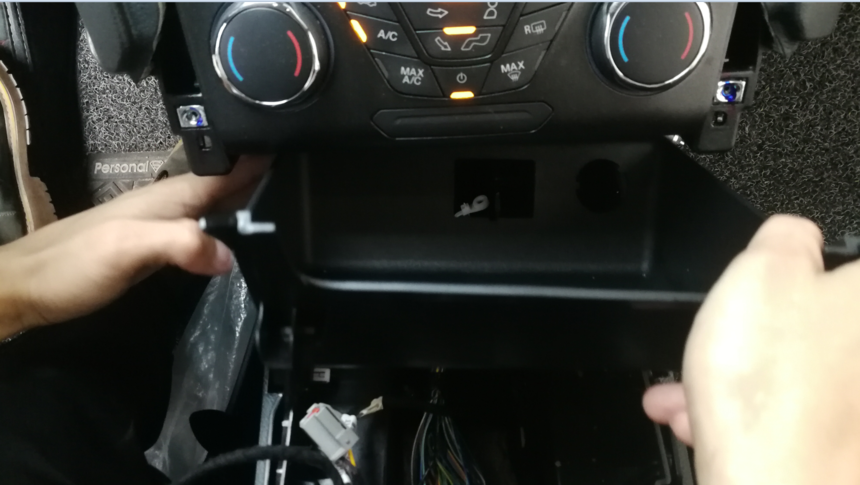

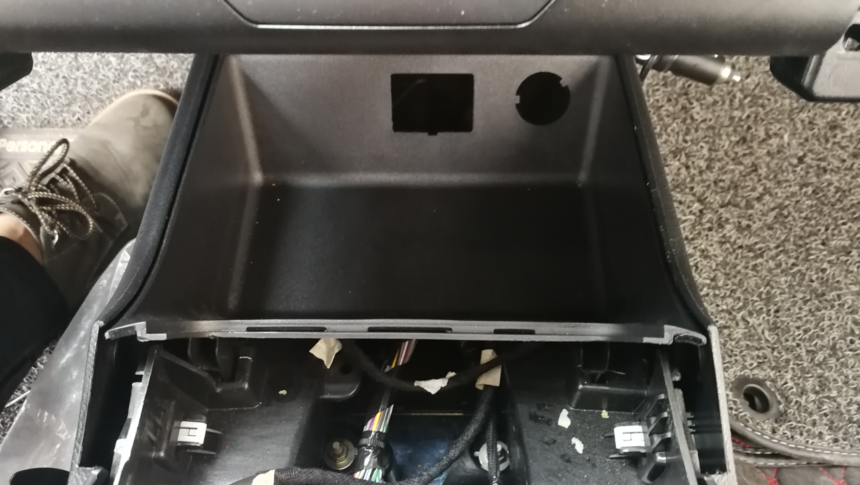

Step 5 Remove the storage box

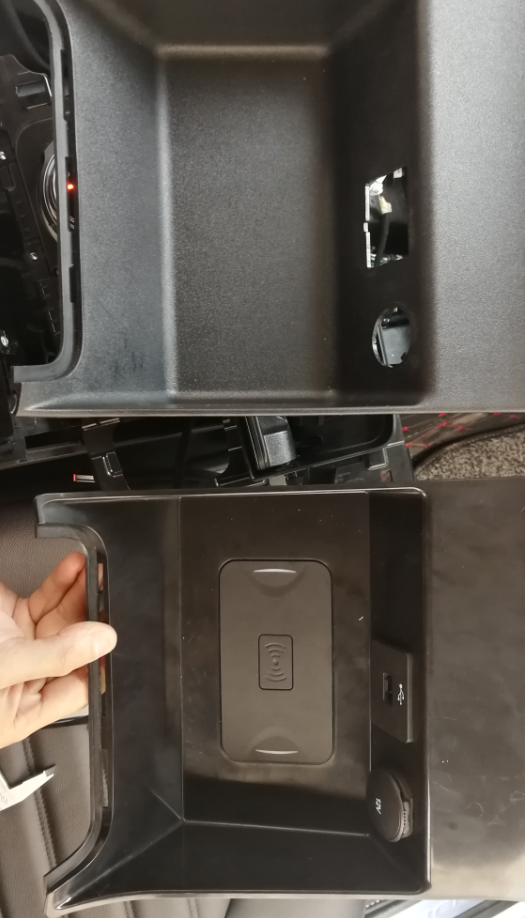

Step 6 Install the original car cigarette lighter and USB on the wireless charging board

Step 7 Connect to the back of the cigarette lighter with the special wiring harness for the special car, and take power without any damage

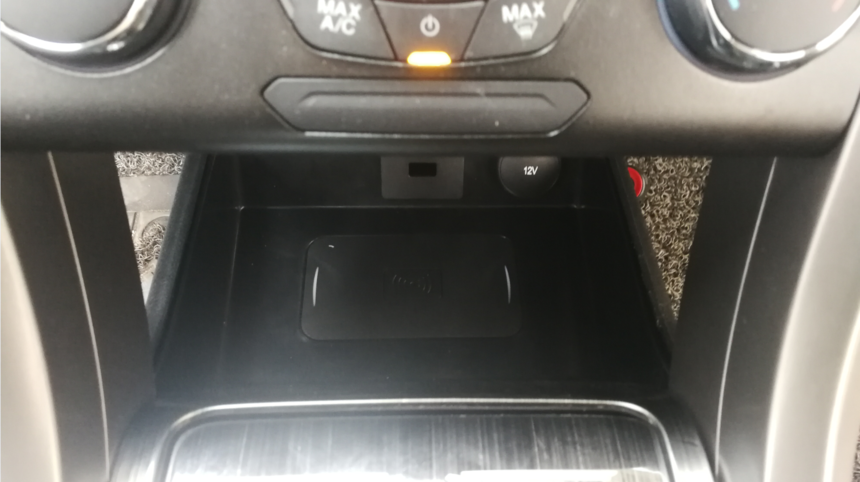

Step 8 Reset to the original way to realize wireless charging
