BYD Song SUV car wireless charger refit plan

1. Modification purpose

BYD Song’s 18 models have long occupied the market share of mid-range cars. Whether it is domestic or foreign, the market sales are very large, and car owners have a great demand for wireless charging. In order to meet the needs of car owners for wireless charging, our company developed this model in the early stage.

2. Modification method

Replace the original car storage box cushion without affecting the integrity and cleanliness of the original car. It is built according to the original car size.

3. Modification effect

To achieve true wireless charging, there is no line in sight. And realize the mobile phone fast charging experience.

4. Modification steps

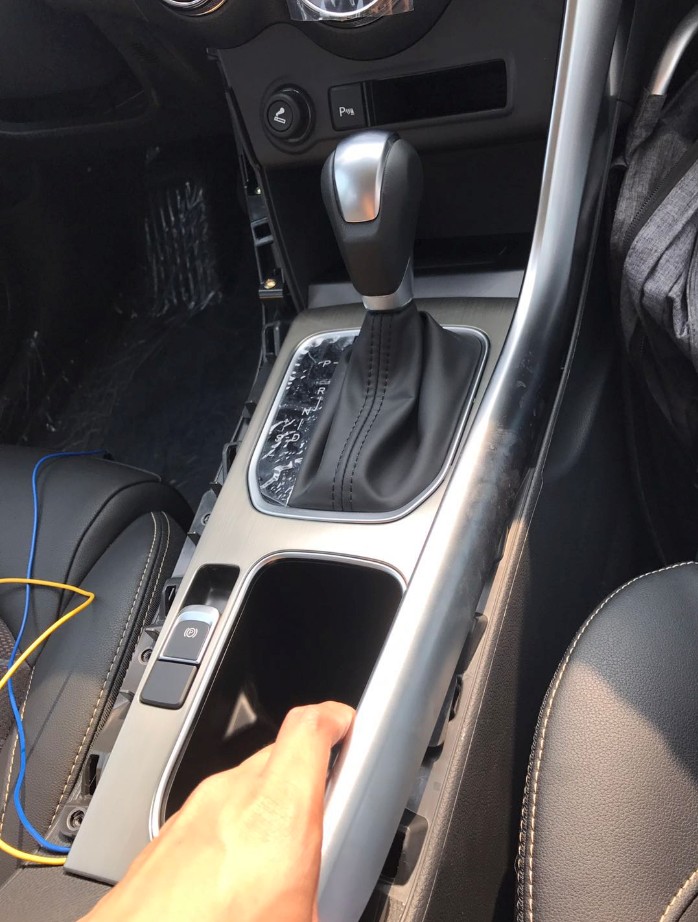

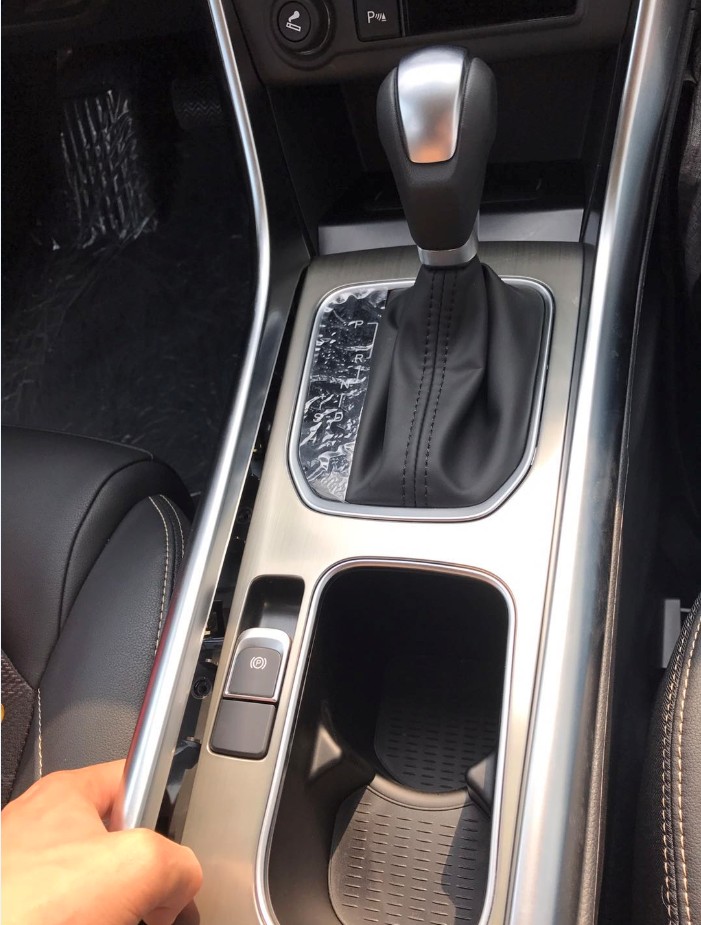

Step 1 Pry open the silver trims on both sides of the gear handle

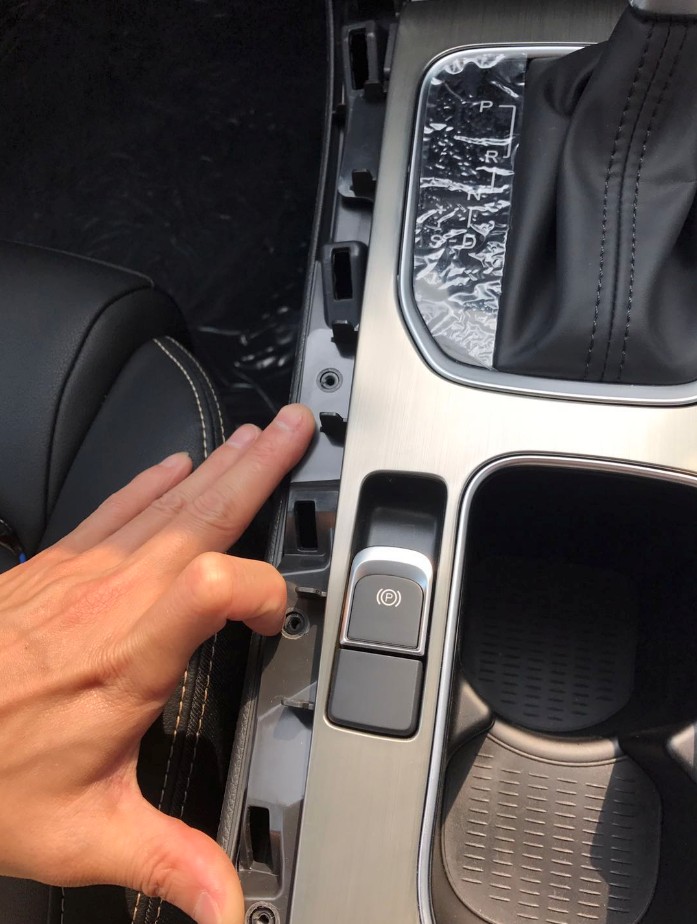

Step 2 Remove the 3 screws under the left trim

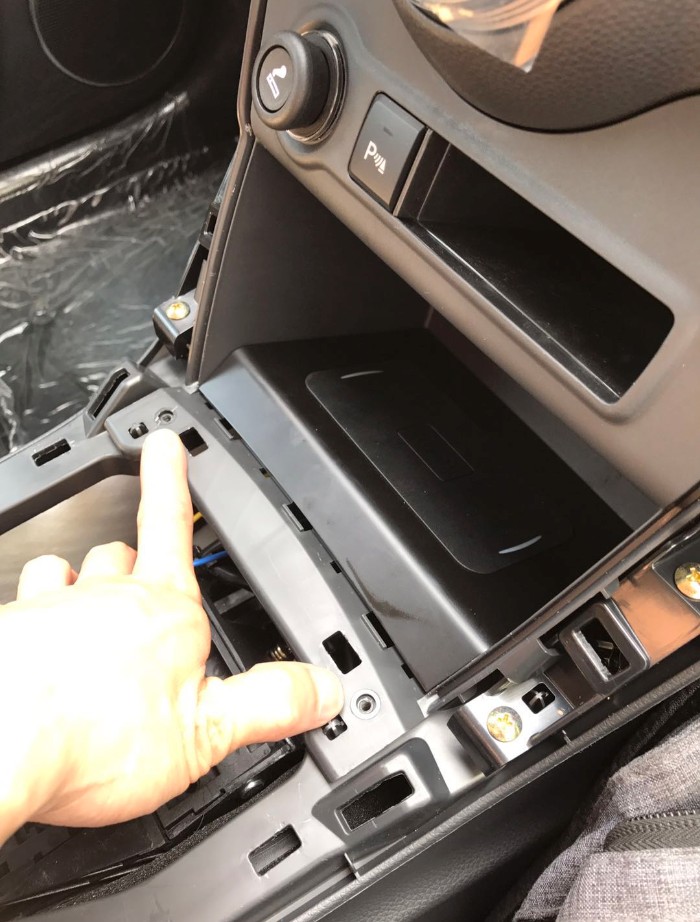

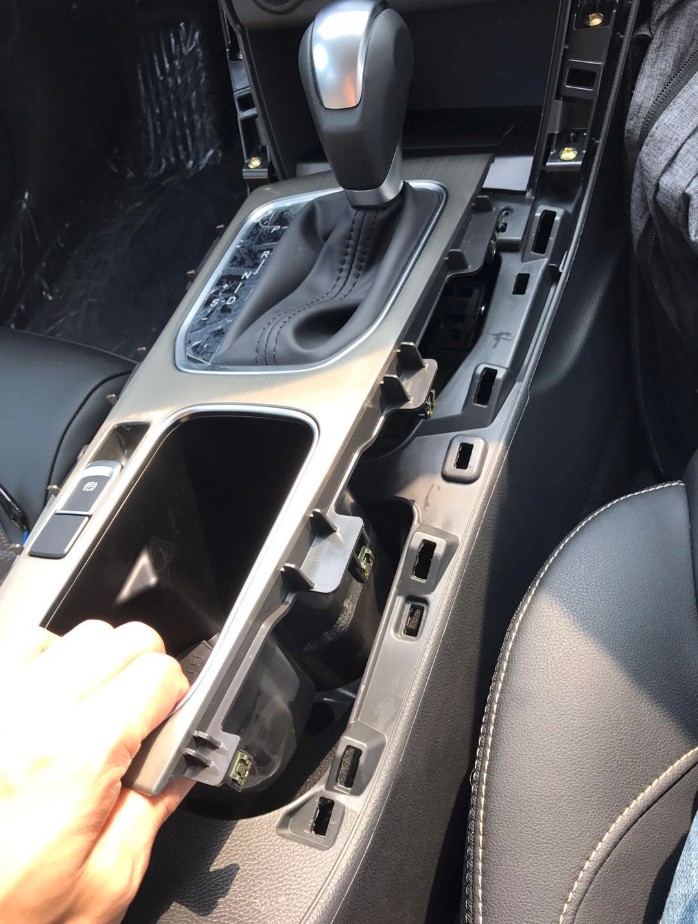

Step 3 Lift up the panel

Step 4 Remove the 2 screws on the front of the handle

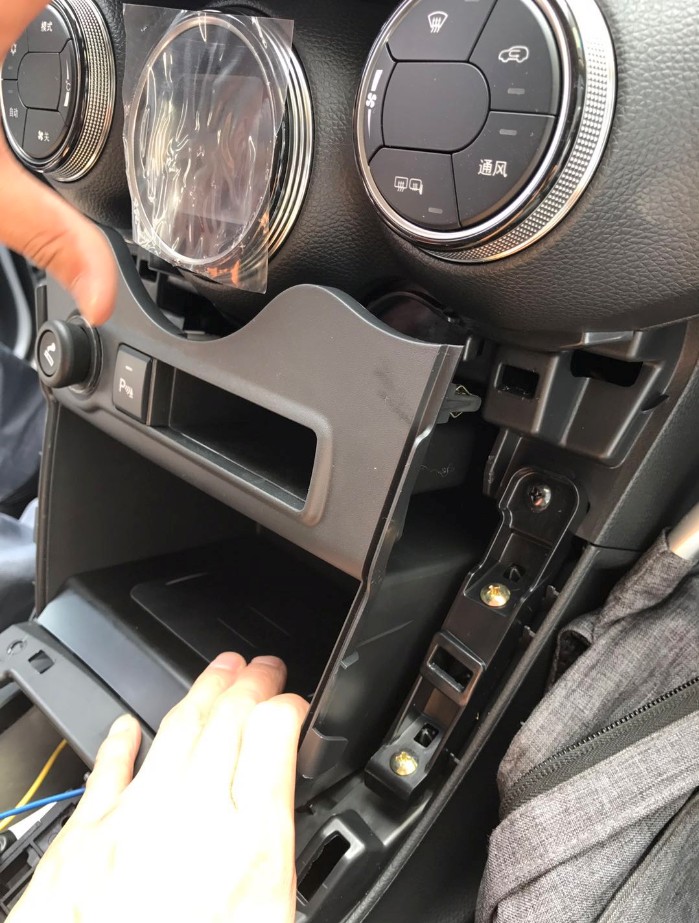

Step 5 Pull out the face frame of the cigarette lighter

Step 6 You can get electricity from the cigarette lighter or from the fuse box
