Peuceot 4008/5008 car wireless charger refit plan

1. Modification purpose

Peugeot 4008/5008 occupies a certain market share of mid-range cars, whether domestic or foreign, market sales are very large, and car owners have a great demand for wireless charging. In order to meet the needs of car owners for wireless charging, our company developed this model in the early stage.

2. Modification method

Replace the original car storage box cushion without affecting the integrity and cleanliness of the original car. It is built according to the original car size.

3. Modification effect

To achieve true wireless charging, there is no line in sight. And realize the mobile phone fast charging experience.

4. Modification steps

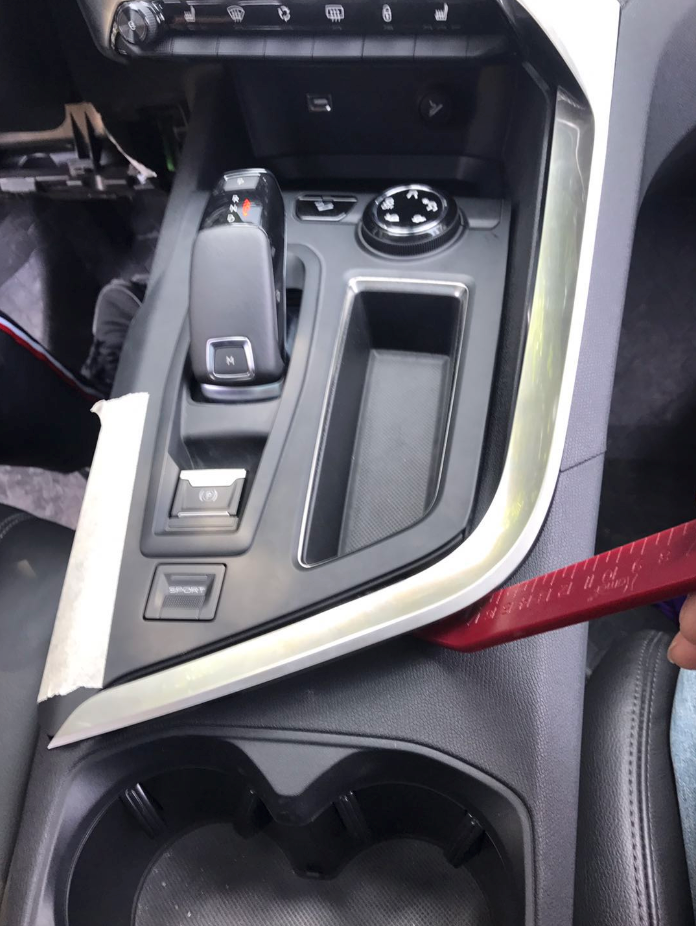

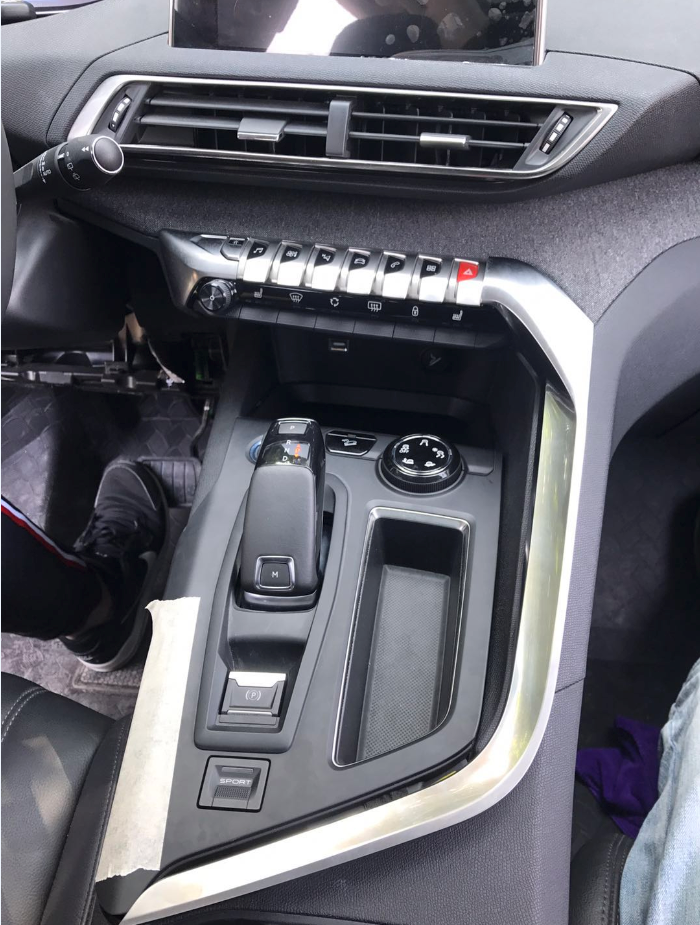

Step 1 Pry open the silver trim

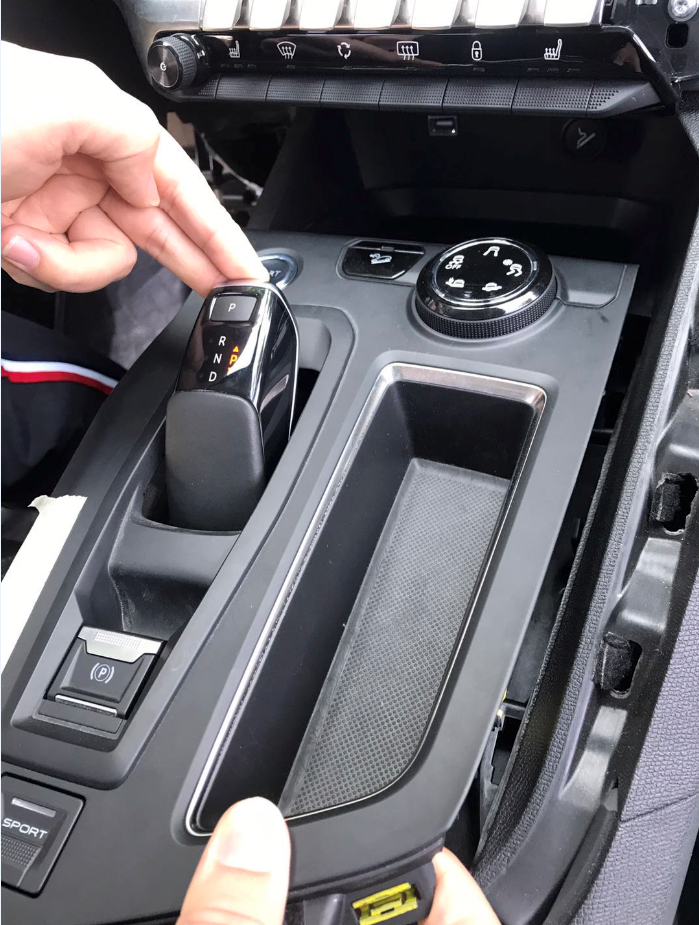

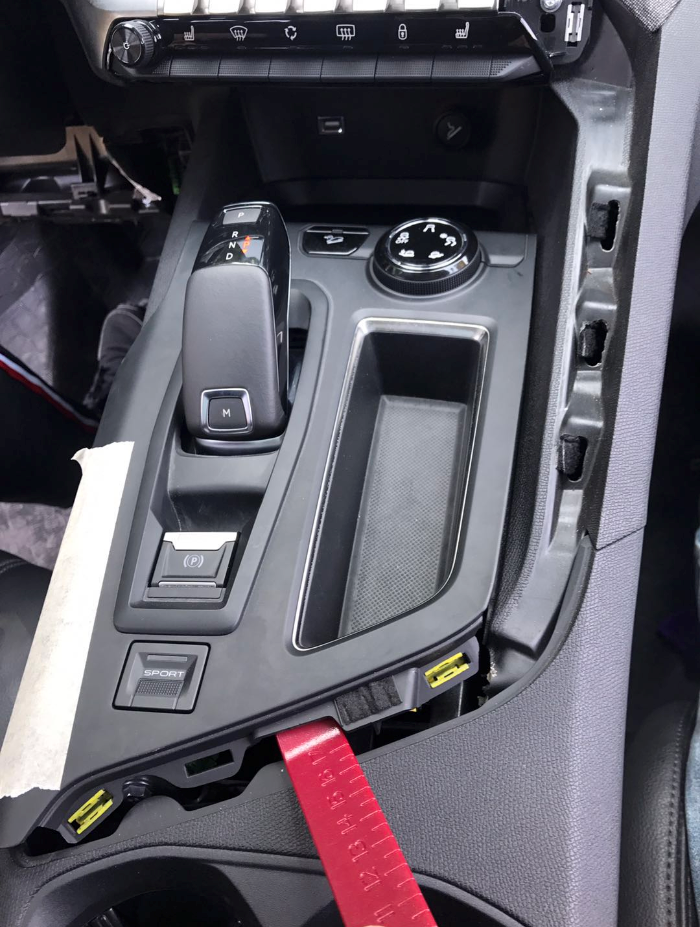

Step 2 Raise the panel of the knob

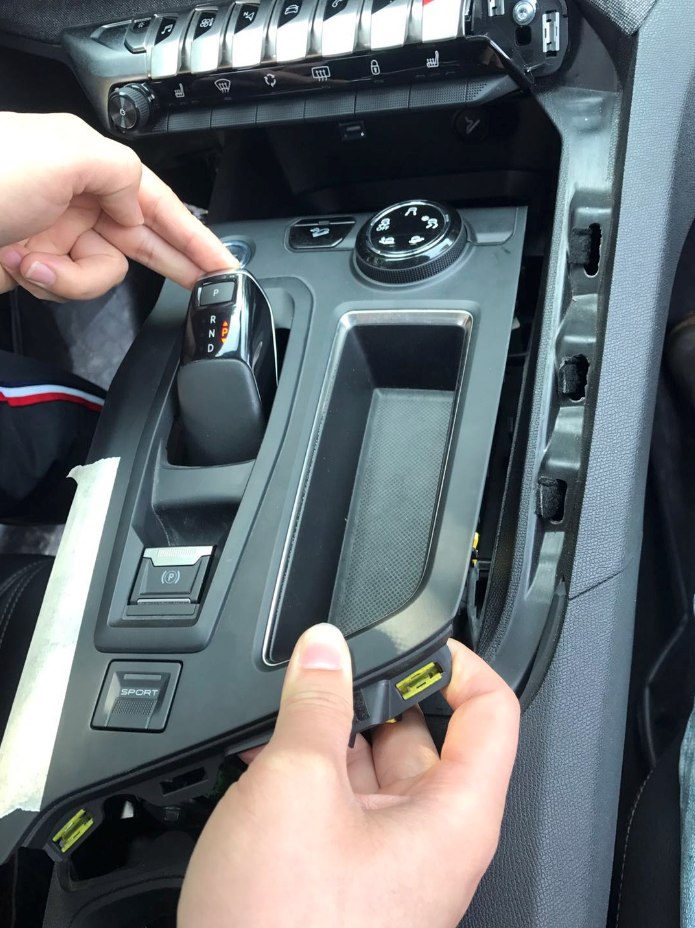

Step 3 Take care to take out the panel through the handle

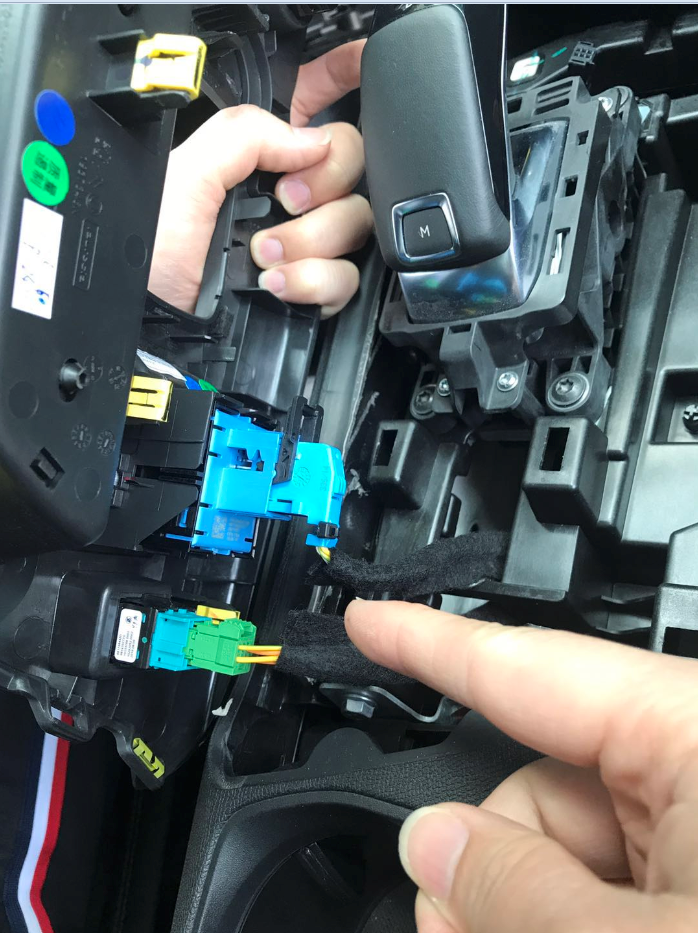

Step 4 Also pay attention to the plug under the panel

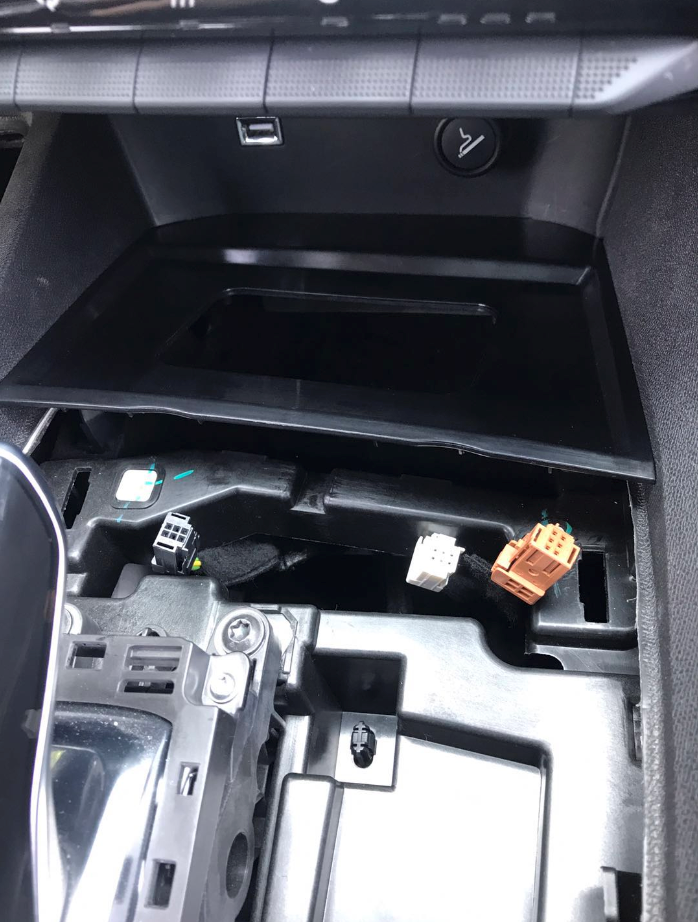

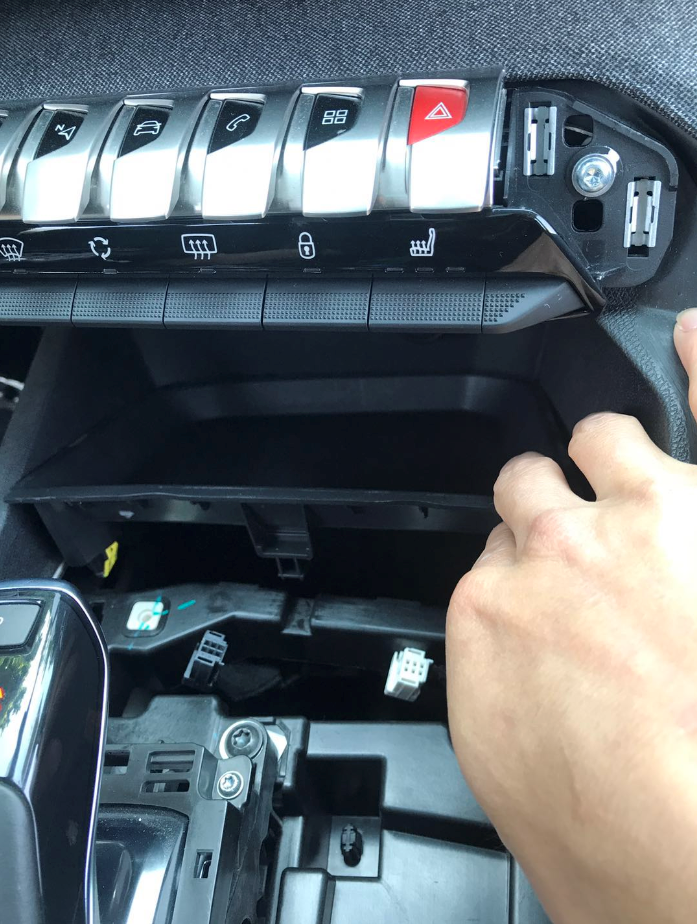

Step 5 Remove the storage parts from the front of the panel

Step 6 Replace the wireless charging product and use the special car wiring harness to insert the back of the cigarette lighter non-destructively
