Honda CRV front car wireless charger refit plan

1. Modification purpose

Honda CRV has long occupied the market share of mid-range cars. Whether it is domestic or foreign, market sales are very large, and car owners have great demand for wireless charging. In order to meet the needs of car owners for wireless charging, our company developed this model in the early stage.

2. Modification method

Replace the original car storage box cushion without affecting the integrity and cleanliness of the original car. It is built according to the original car size.

3. Modification effect

To achieve true wireless charging, there is no line in sight. And realize the mobile phone fast charging experience.

4. Modification steps

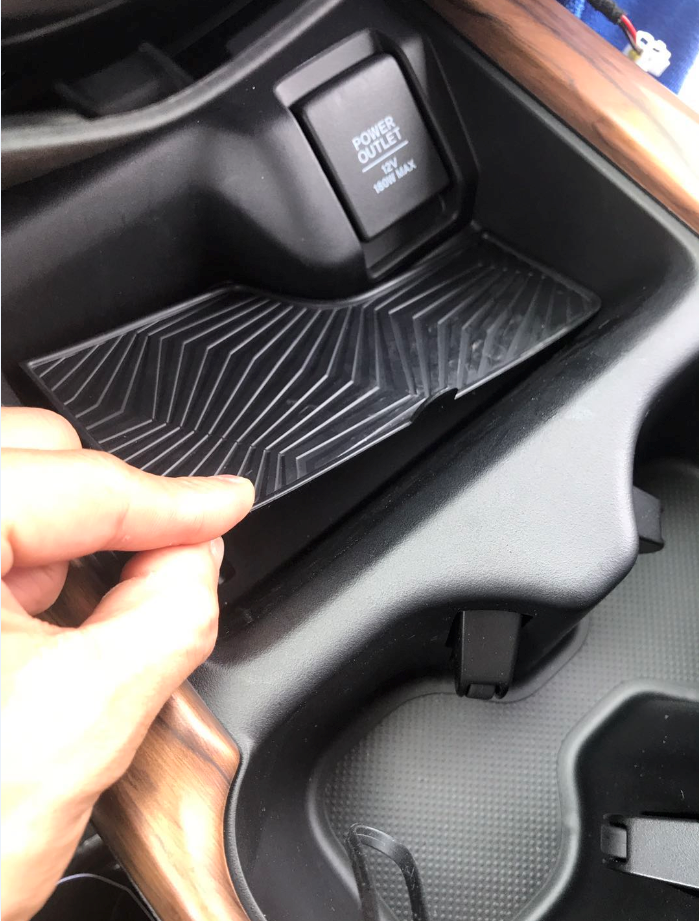

Step 1 Remove the rubber pad under the cigarette lighter

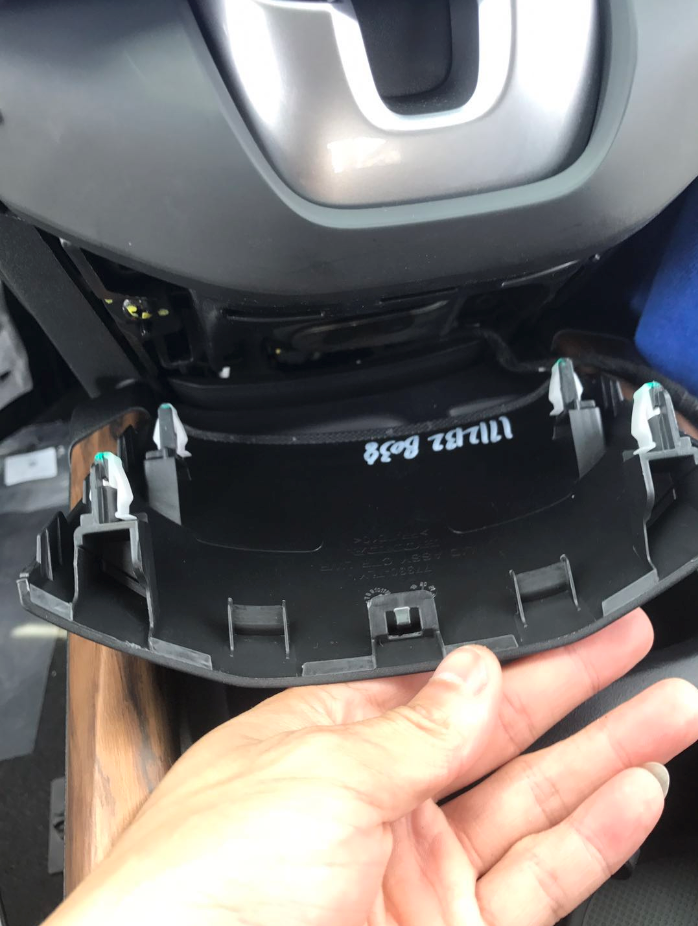

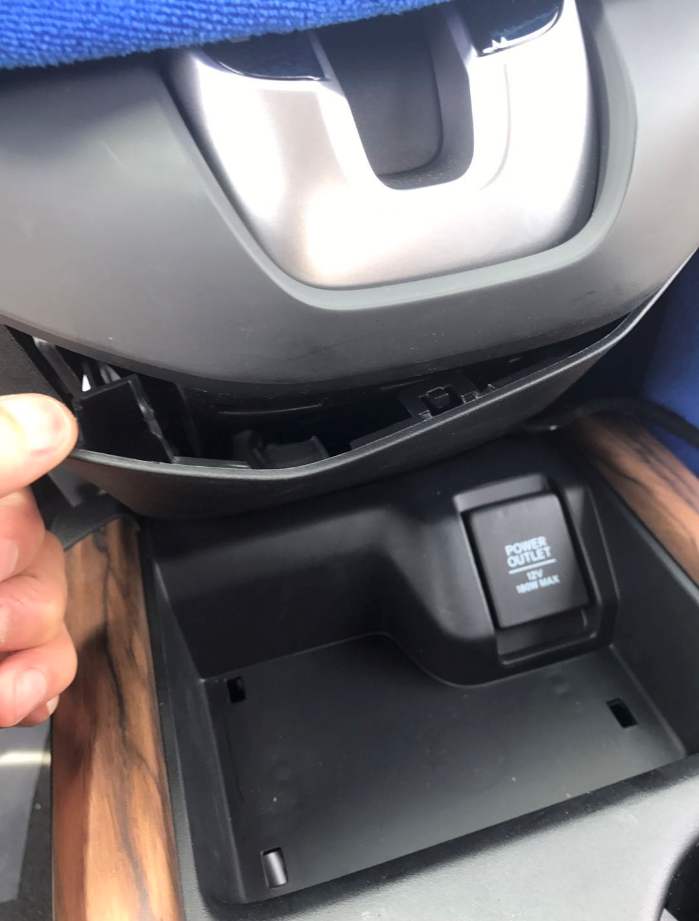

Step 2 Pry the lower trim off the file and remove it

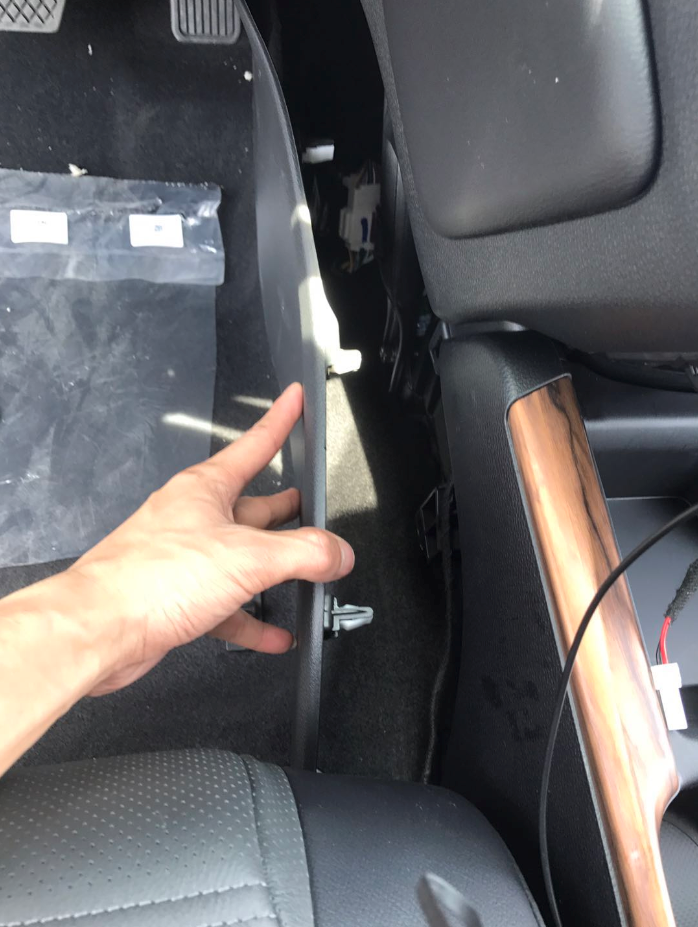

Step 3 Remove the trim panel on the side of the main driver

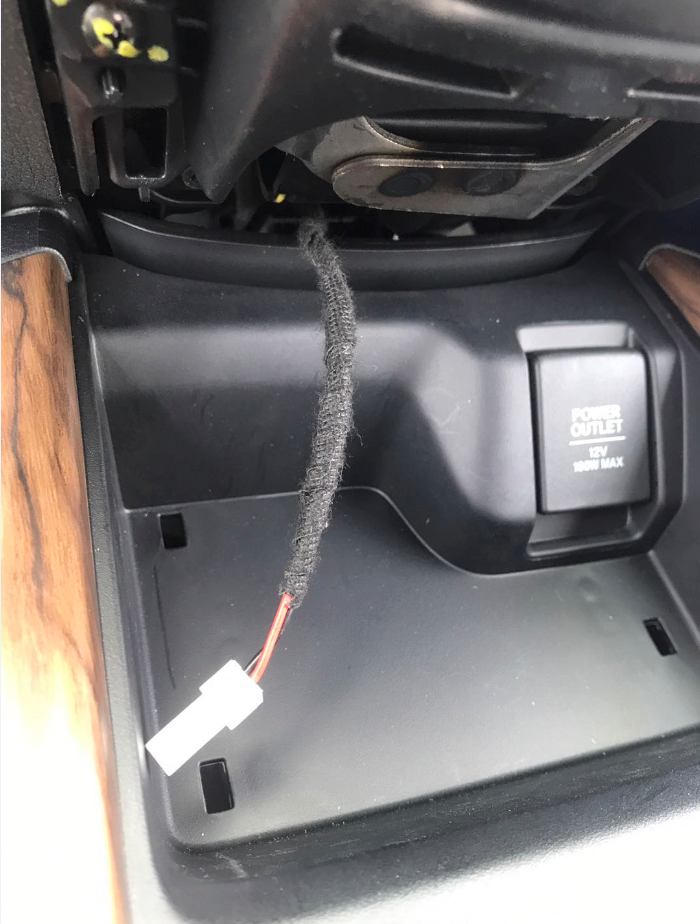

Step 4 Run the wire from the side to near the cigarette lighter

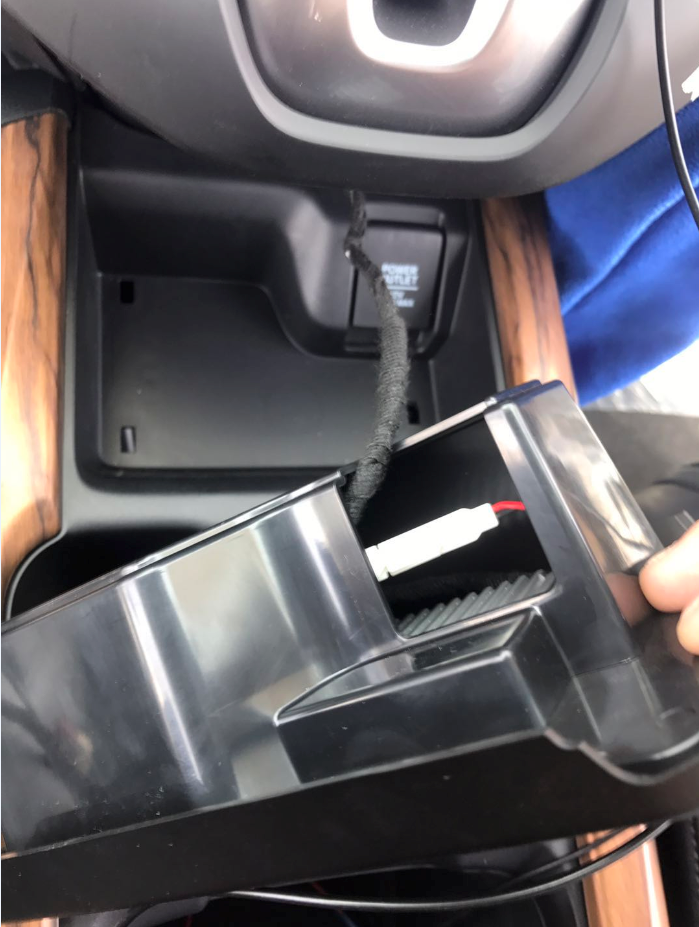

Step 5 Connect the wireless charging product and hide the docking connector inside the product

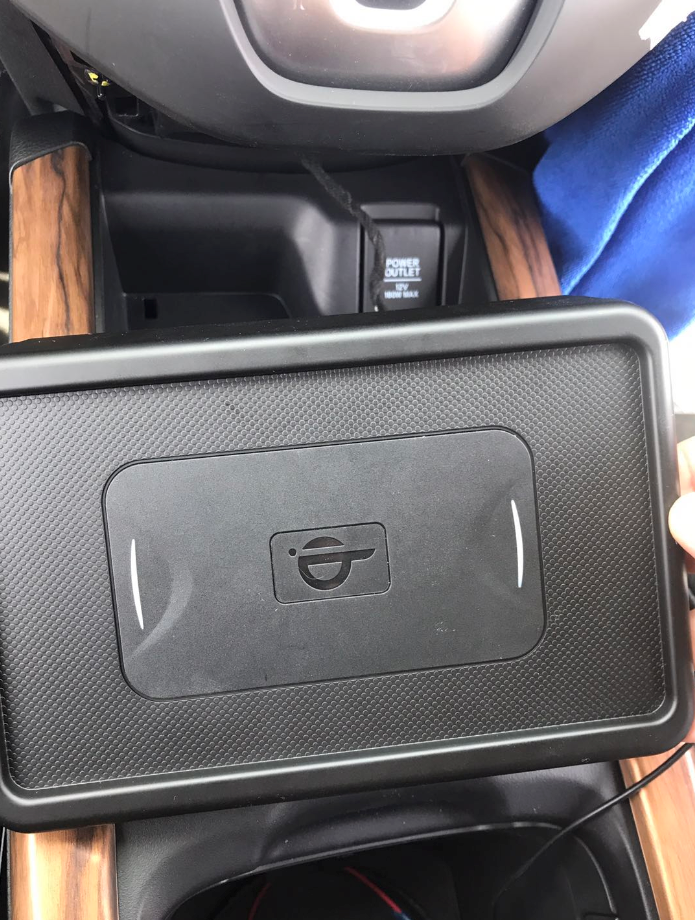

Step 6 When placing the product, pay attention to the line passing through the gap on the upper right

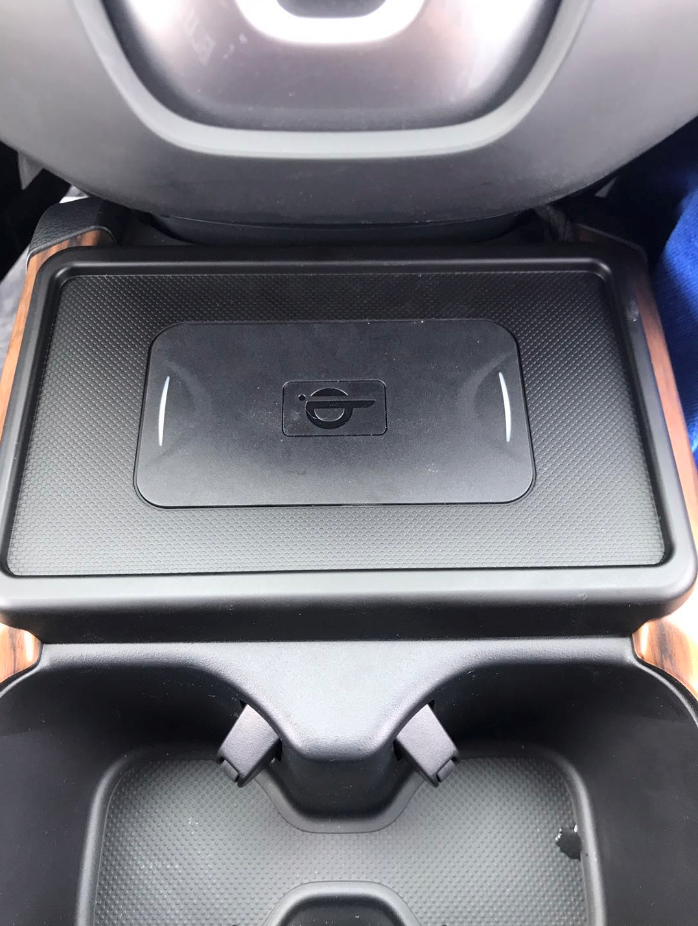

Step 7 After placing the product, buckle the upper trim
