Honda Accord 9 car wireless charger refit plan

1. Modification purpose

Honda Accord has long occupied the market share of mid-range cars. Whether it is domestic or foreign, market sales are very large, and car owners have great demand for wireless charging. In order to meet the needs of car owners for wireless charging, our company developed this model in the early stage.

2. Modification method

Replace the original car storage box cushion without affecting the integrity and cleanliness of the original car. It is built according to the original car size.

3. Modification effect

To achieve true wireless charging, there is no line in sight. And realize the mobile phone fast charging experience.

4. Modification steps

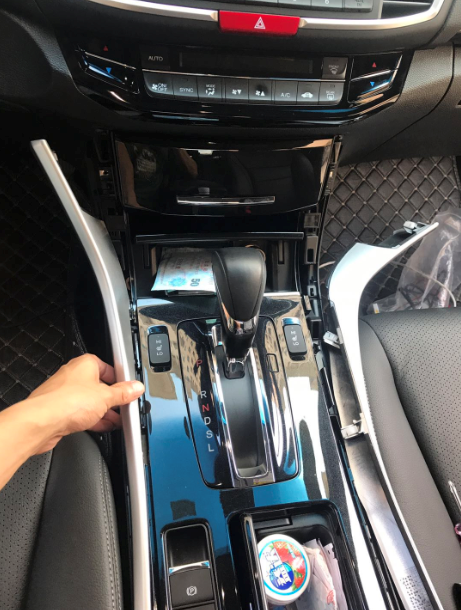

Step 1 Remove the silver trims on both sides of the gear

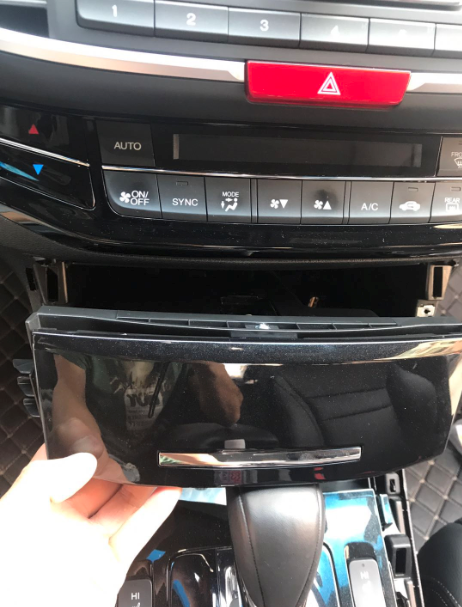

Step 2 Remove the 2 screws of the central control storage box

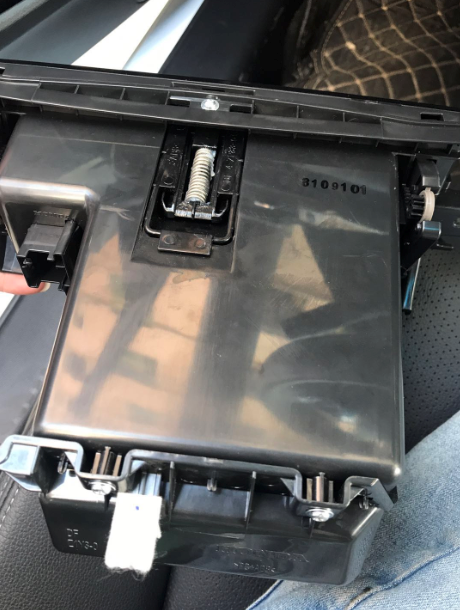

Step 3 Pull out the storage box, pay attention to the plug at the back

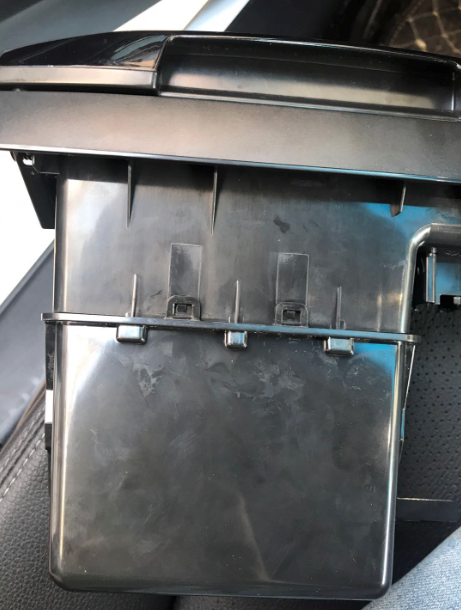

Step 4 Remove the bottom cover of the storage box and punch holes in the bottom cover

Step 5 Use 3M double-sided tape to stick on the back of the wireless charging product

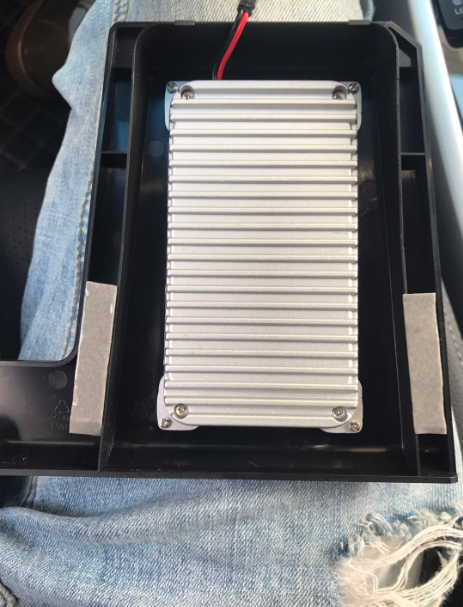

Step 6 Install the wireless charging product in the storage box

Step 7 Connect the special wiring harness for the special car to the back of the cigarette lighter, and install it without damage
