Hyundai Sonata 9 car wireless charger refit plan

1. Modification purpose

Hyundai Sonata 9th generation has long occupied the market share of mid-range cars. Whether it is domestic or foreign, market sales are very large, and car owners have great demand for wireless charging. In order to meet the needs of car owners for wireless charging, our company developed this model in the early stage.

2. Modification method

Replace the original car storage box cushion without affecting the integrity and cleanliness of the original car. It is built according to the original car size.

3. Modification effect

To achieve true wireless charging, there is no line in sight. And realize the mobile phone fast charging experience.

4. Modification steps

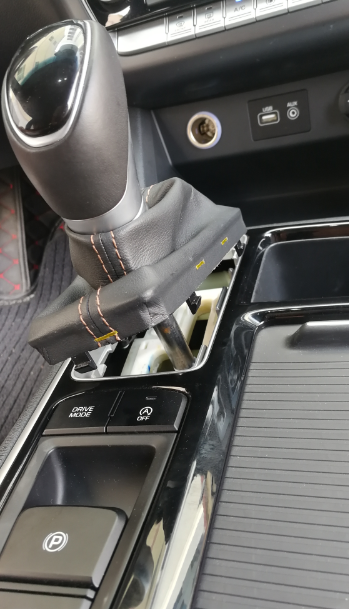

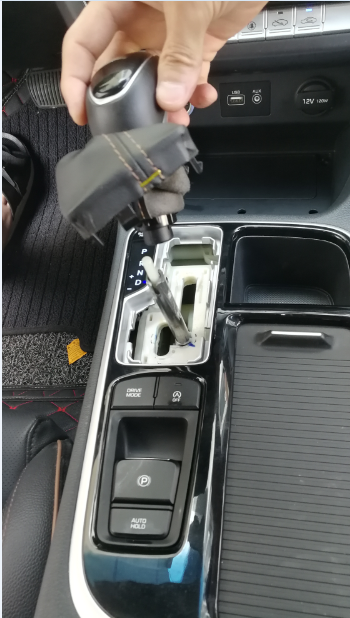

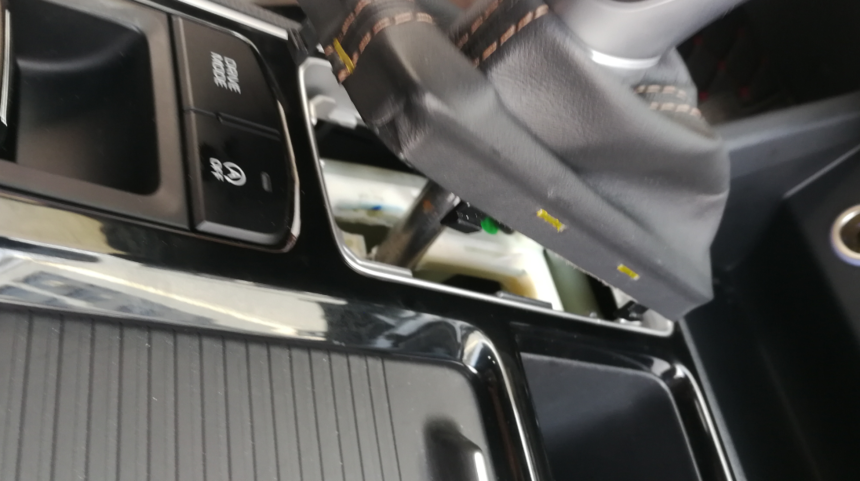

Step 1 Raise the leather part of the gear knob, and then pull out the gear knob directly

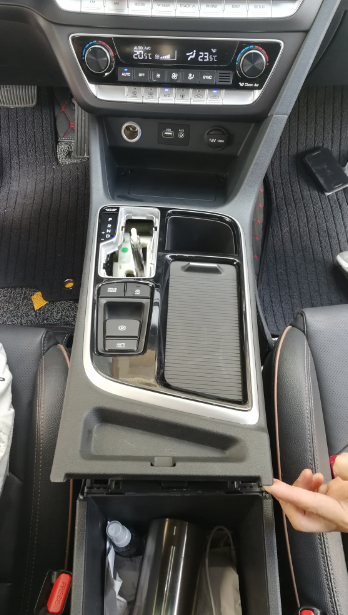

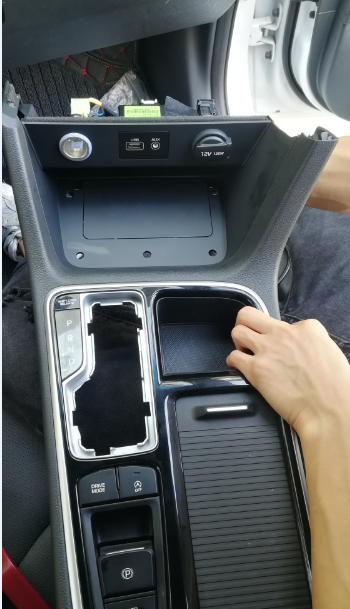

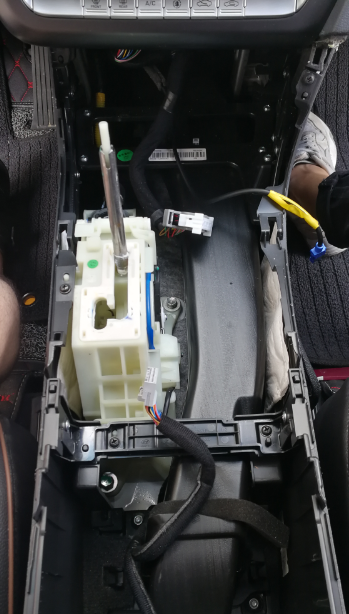

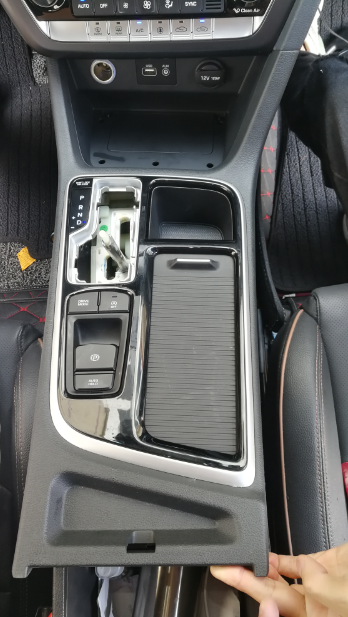

Step 2 Pry open the whole panel around the file and remove it, pay attention to the plug

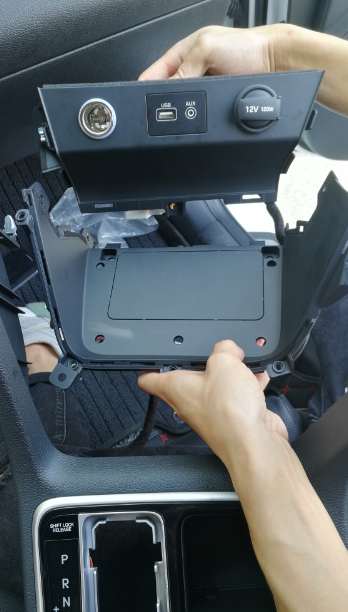

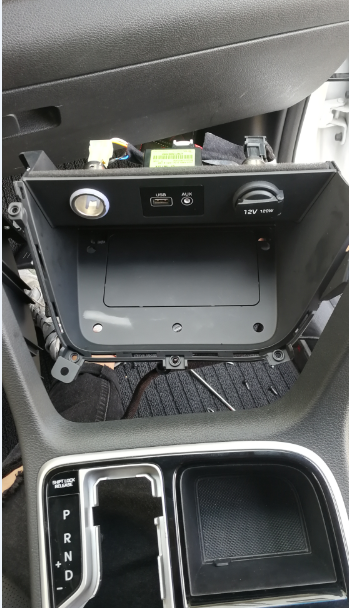

Step 3 Separate the cigarette lighter from the storage box, paying attention to the screws on the back.

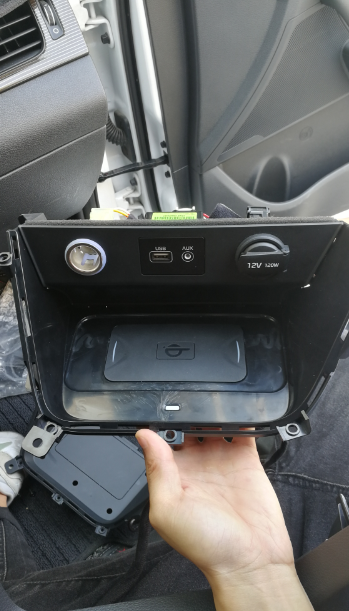

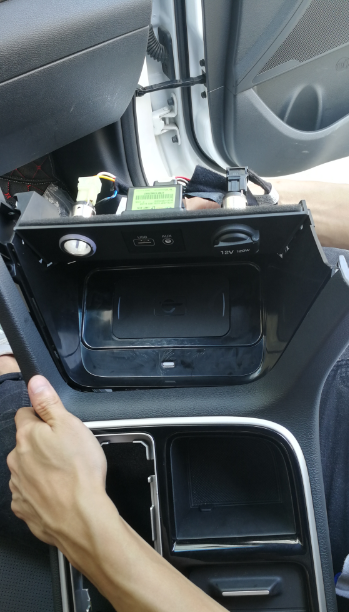

Step 4 Replace the wireless charging product, and switch to the cigarette lighter at the rear to get power

Step 5 Then restore
