Toyota IZOA C-HR wireless charger refit plan

1. Modification purpose

Toyota Yize, C-HR, as Toyota's flagship model, has a large market sales, whether it is domestic or foreign, and car owners have a great demand for wireless charging. In order to meet the needs of car owners for wireless charging, our company developed this model in the early stage.

2. Modification method

Replace the original car storage box without affecting the integrity and cleanliness of the original car. It is built according to the original car size.

3. Modification effect

To achieve true wireless charging, there is no line in sight. And realize the mobile phone fast charging experience.

4. Modification steps

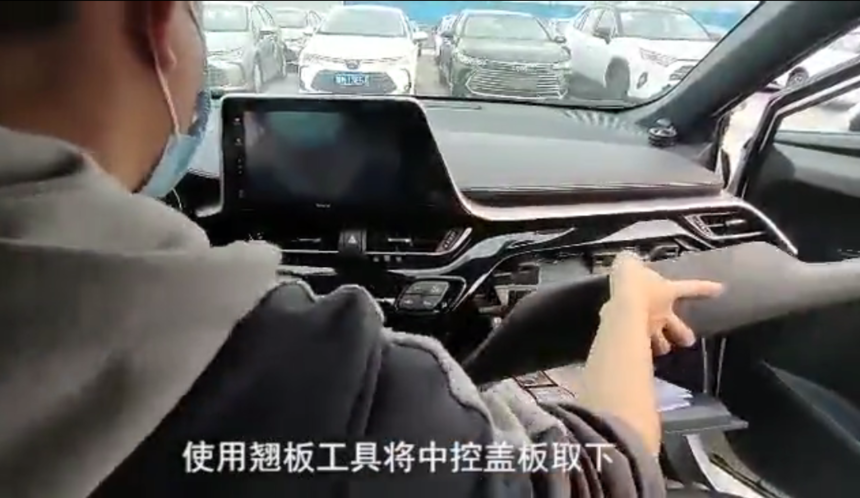

Step 1 Use the rocker tool to remove the central control cover

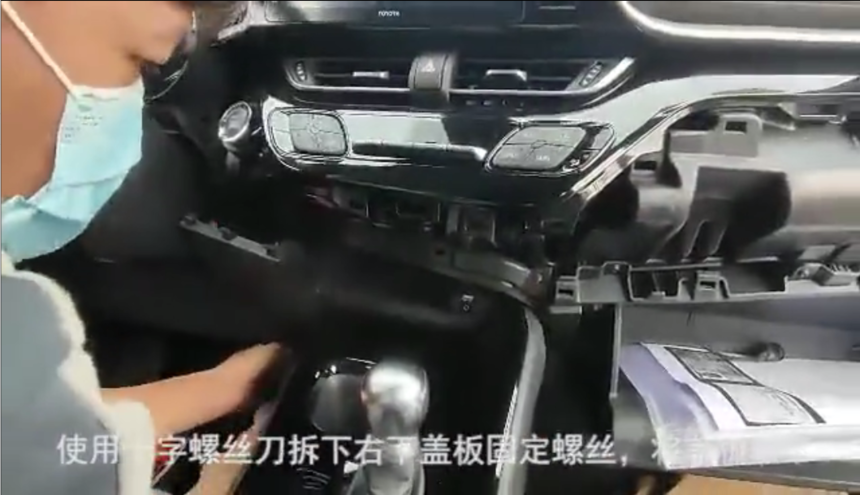

Step 2 Use a Phillips screwdriver to remove the fixing screw of the lower right cover

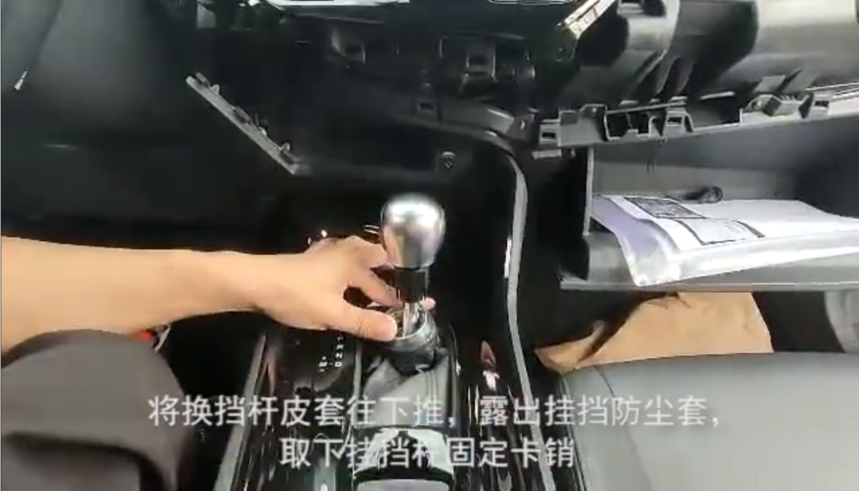

Step 3 Push the gear shift lever holster down to expose the gear dust cover, and remove the gear lever fixing pin

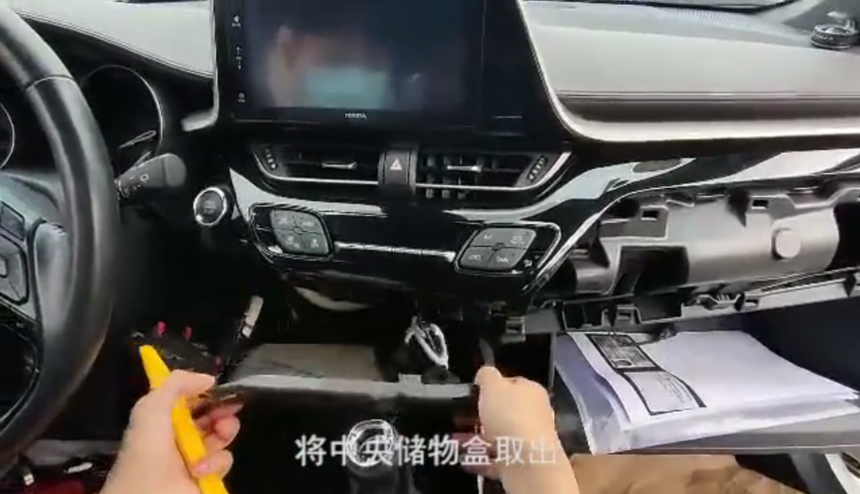

Step 4 Take out the central storage box

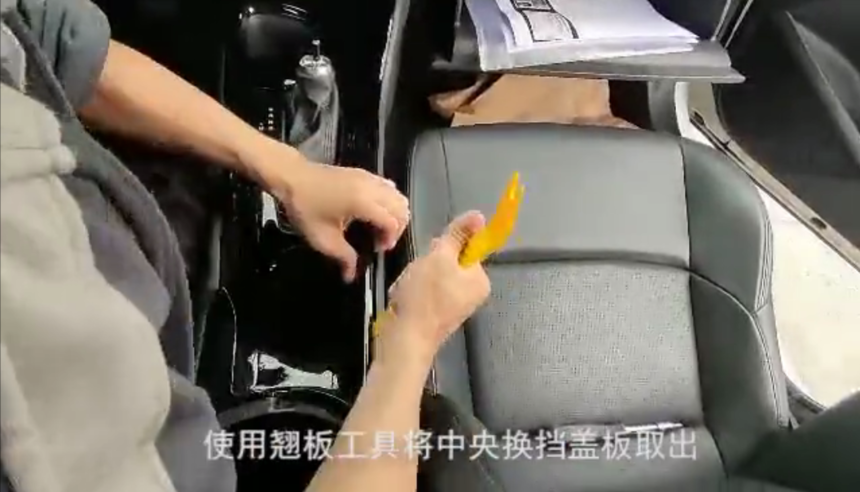

Step 5 Use the rocker tool to take out the central replacement baffle cover

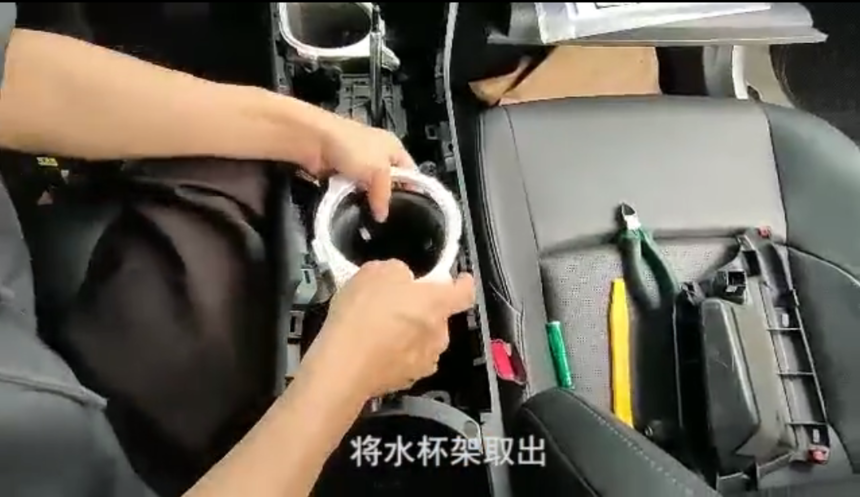

Step 6 Take out the water cup holder

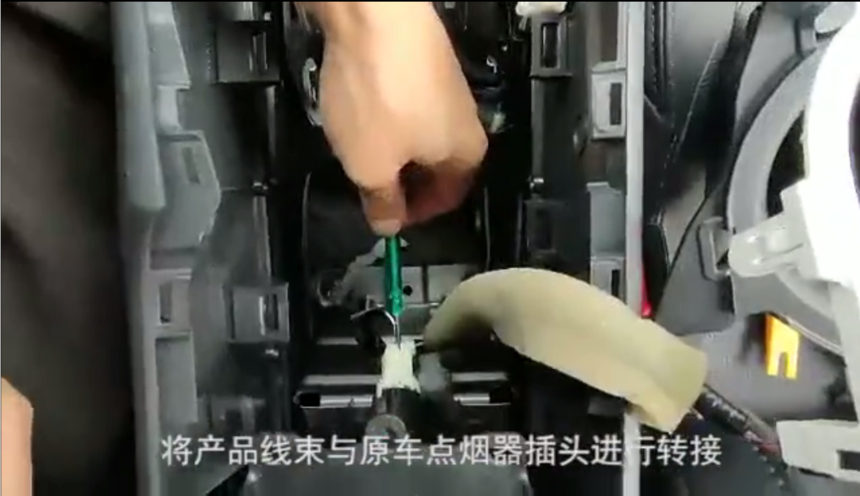

Step 7 Connect the product wiring harness to the original car cigarette lighter plug
