19 Audi new A6L wireless charger refit plan

1. Modification purpose

Audi A6L has long occupied the market share of mid-to-high-end vehicles. Whether it is domestic or foreign, the market sales are very large, and car owners have a great demand for wireless charging. In order to meet the needs of car owners for wireless charging, our company developed this model in the early stage.

2. Modification method

Replace the armrest box box of the original car without affecting the integrity and cleanliness of the original car. It is built according to the original car size.

3. Modification effect

In the true sense of wireless charging, there is no line in sight. And realize the mobile phone fast charging experience.

4. Modification steps

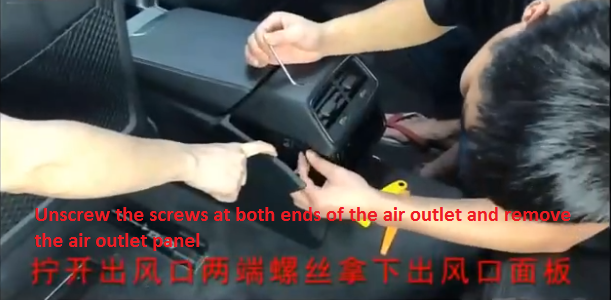

Step 1 Unscrew the screws at both ends of the air outlet and remove the air outlet panel

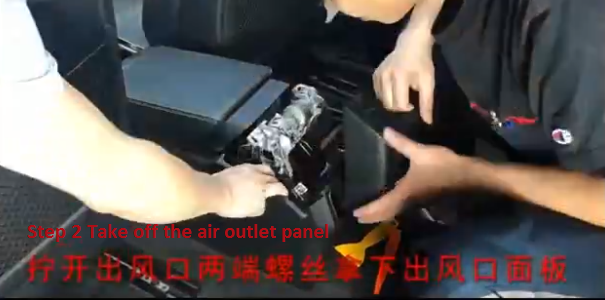

Step 2 Take off the air outlet panel

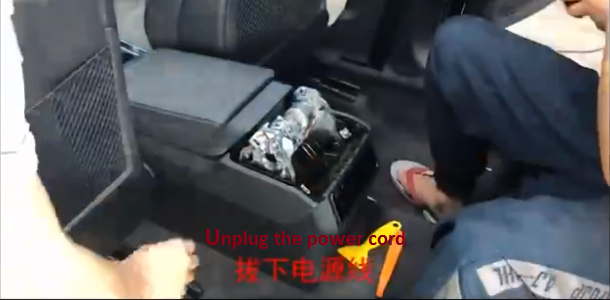

Step 3 Unplug the power cord

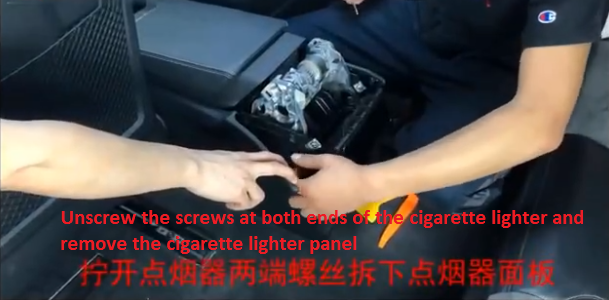

Step 4 Unscrew the screws at both ends of the cigarette lighter and remove the cigarette lighter panel

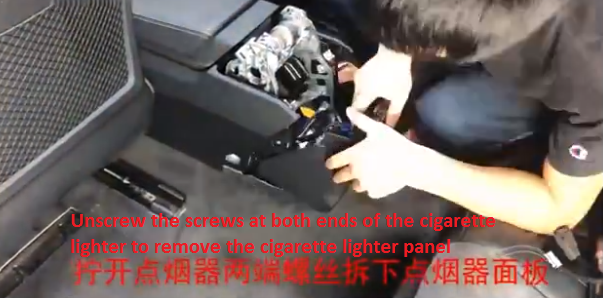

Step 5 Unscrew the screws at both ends of the cigarette lighter to remove the cigarette lighter panel

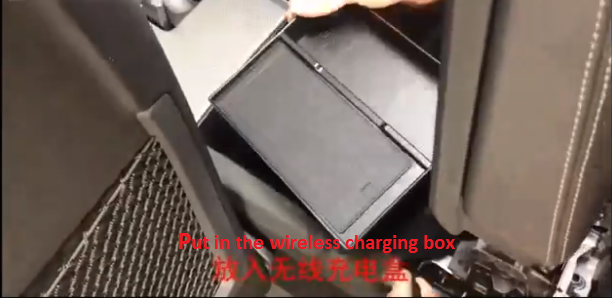

Step 6 Put in the wireless charging box

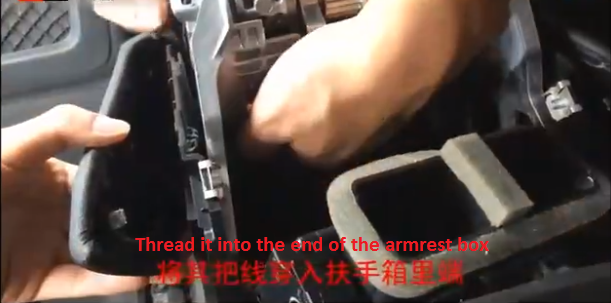

Step 7 Thread it into the end of the armrest box

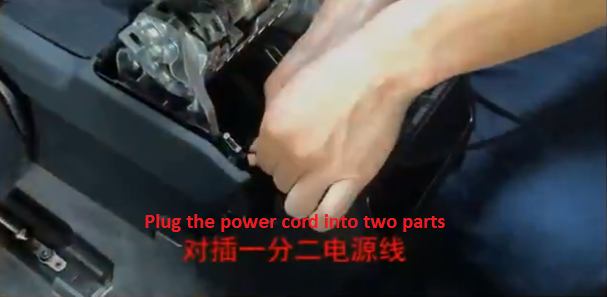

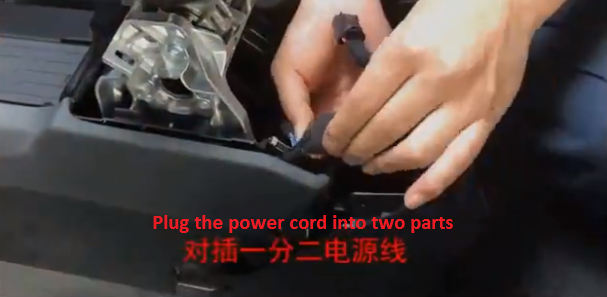

Step 8 Plug the power cord into two parts

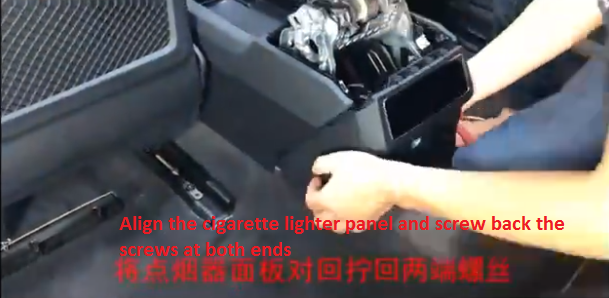

Step 9 Align the cigarette lighter panel and screw back the screws at both ends

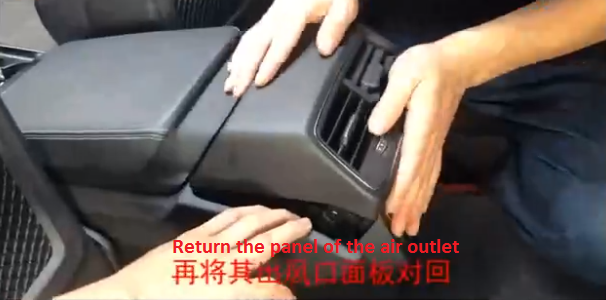

Step 10 Return the panel of the air outlet
