Cadillac CT6 wireless Charger refit Plan

1. Modification purpose

Cadillac CT6 has a large market sales, and car owners have a great demand for wireless charging. In order to meet the needs of car owners for wireless charging, our company developed this model in the early stage.

2. Modification method

Replace the original car storage box cushion without affecting the integrity and cleanliness of the original car. It is built according to the original car size.

3. Modification effect

To achieve true wireless charging, there is no line in sight. And realize the mobile phone fast charging experience.

4. modification steps

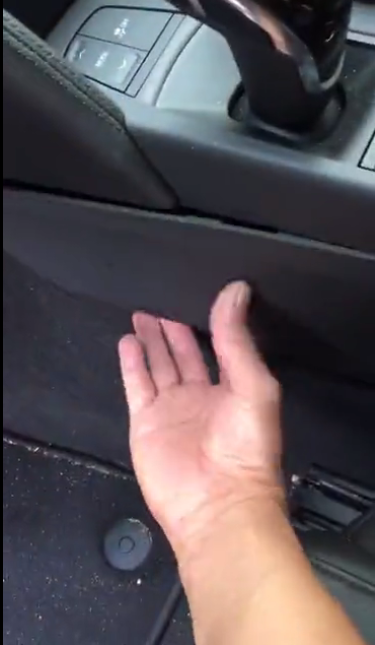

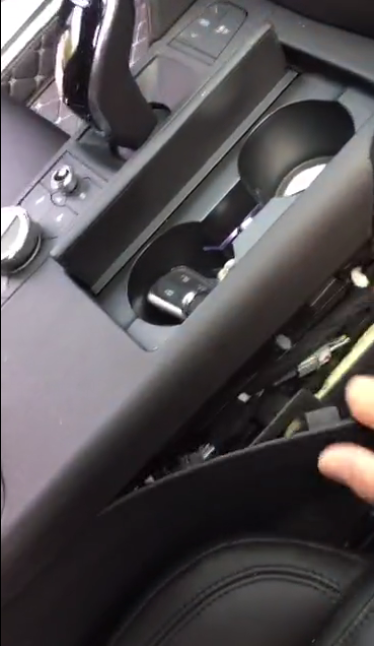

Step 1 Open and remove the baffle on the sidewall of the main driving gear

Step 2 Remove the baffle on the other side

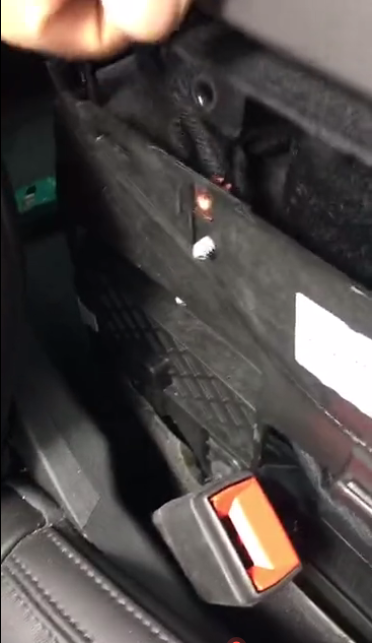

Step 3 Remove the baffle on the side of the armrest box, and then remove the other side

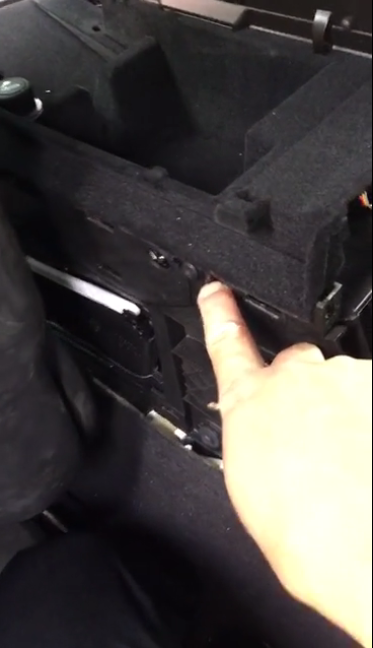

Step 4 Unscrew the fixing screws on the outside of the armrest box and remove the upper cover of the armrest box

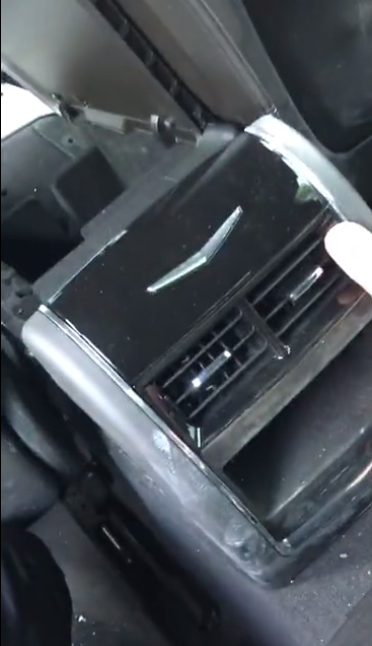

Step 5 Pull out the air conditioning panel behind the armrest box.

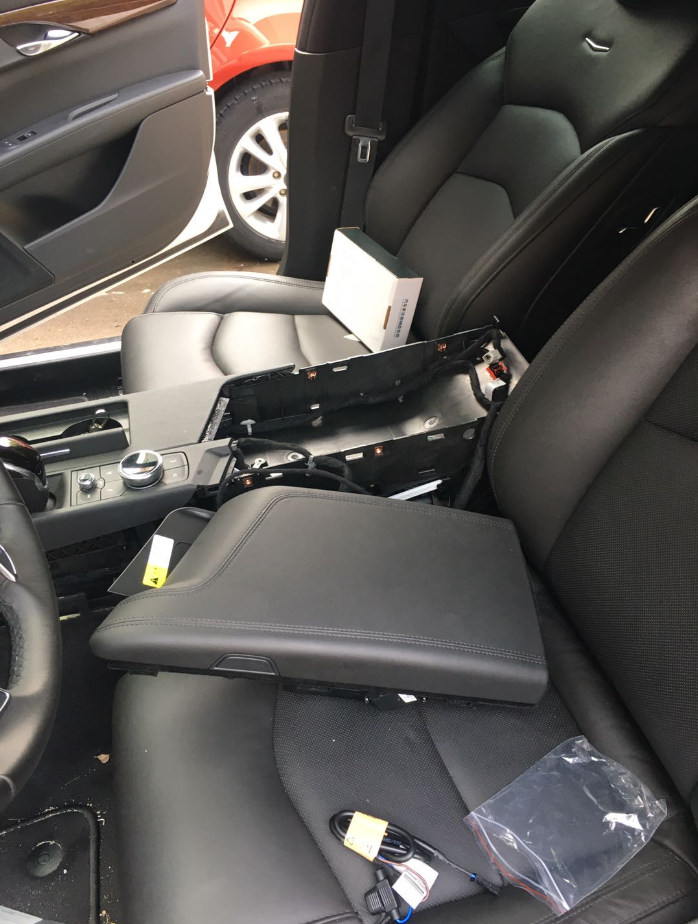

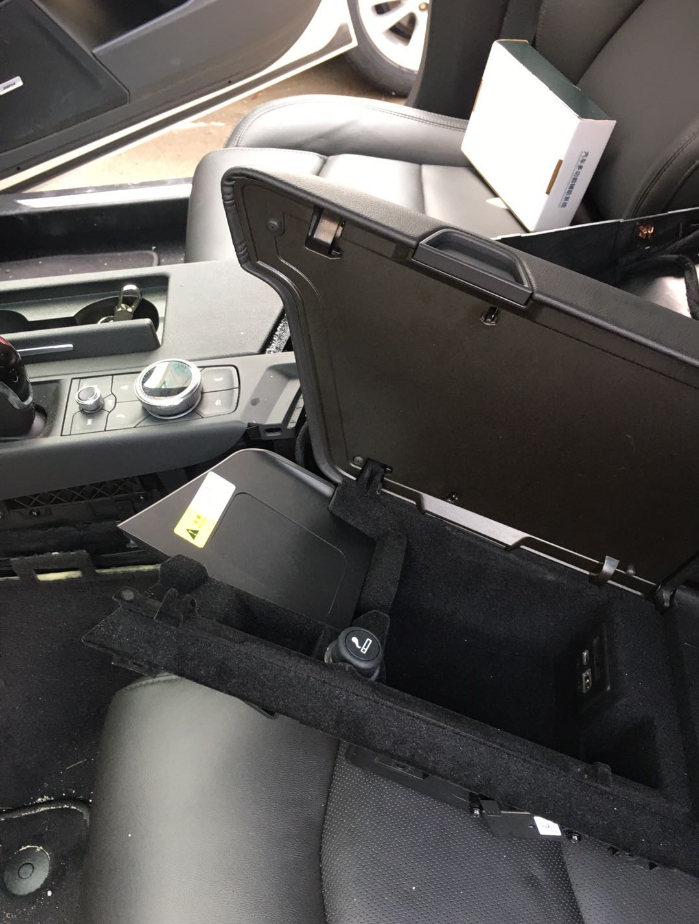

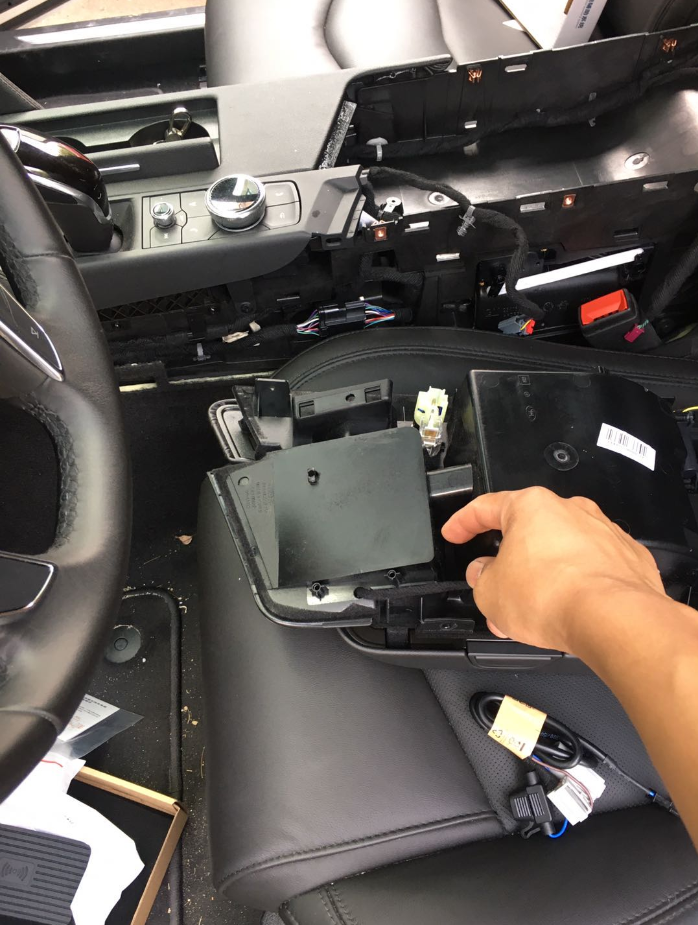

Step 6 Remove the armrest box and find the place where the wireless charger is installed, and remove the original car parts

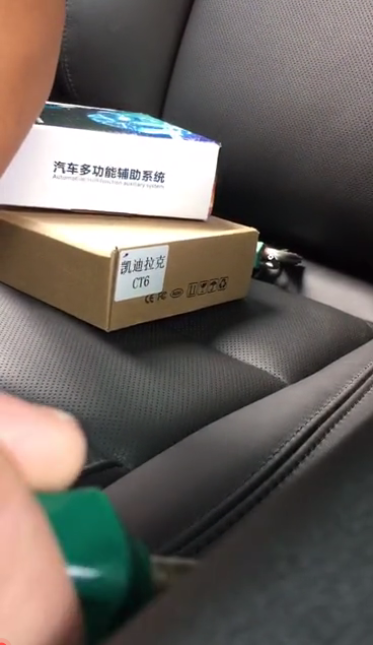

Step 7 Replace the Fast wireless charger, and use a dedicated wire harness to connect to the back of the cigarette lighter to achieve a non-destructive connection

Step 8 Loop reset components
