A dedicated wireless charging solution for Toyota Camry

A dedicated wireless charging solution for Toyota Camry

1. Modification purpose

Honda Camry has long occupied the market share of mid-range cars. Whether it is domestic or foreign, market sales are very large, and car owners have great demand for wireless charging. In order to meet the needs of car owners for wireless charging, our company developed this model early.

2. Modification method

Replace the original car storage box cushion, without affecting the integrity and cleanliness of the original car, and build it according to the original car size.

3. modification effect

To achieve true wireless charging, there is no line in sight. And realize the mobile phone fast charging experience.

4. modification steps

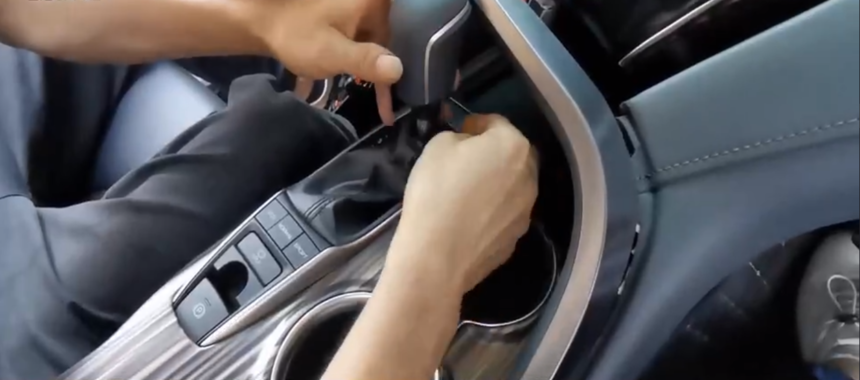

1. Remove the handle button and pull out the gear lever

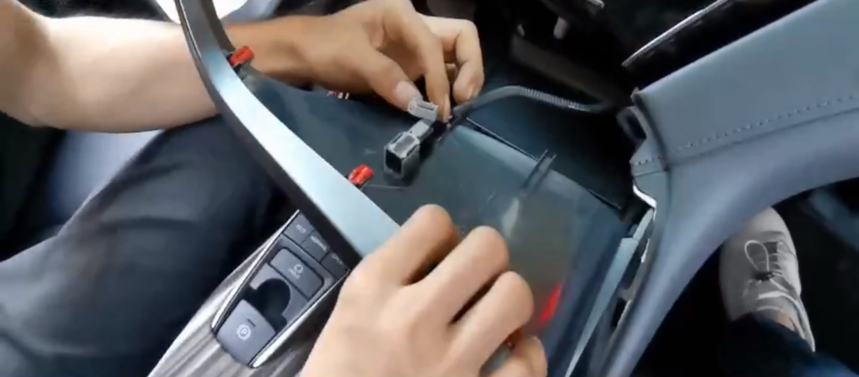

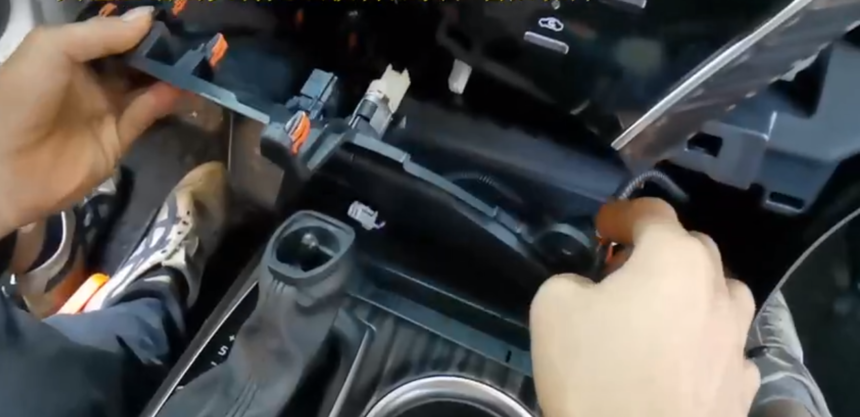

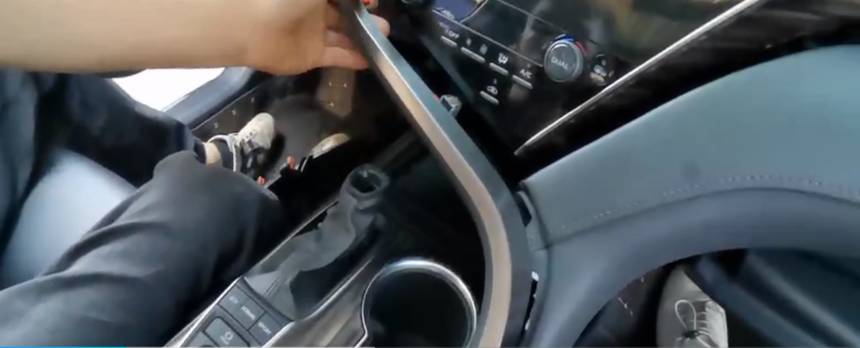

2. Remove the decorative frame and remove the terminal

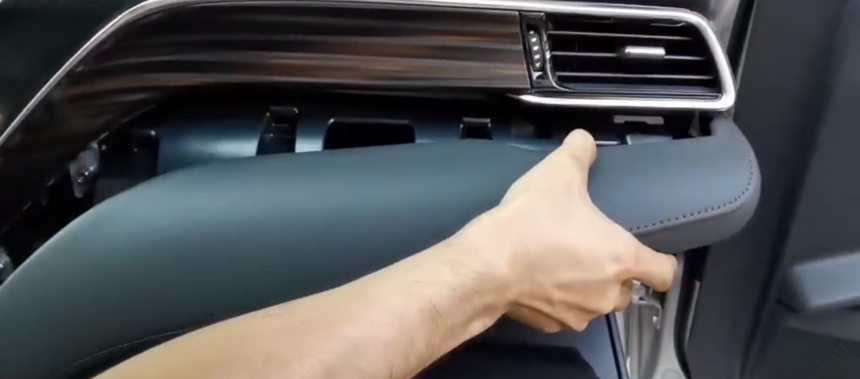

3. Remove the front skin of the co-pilot

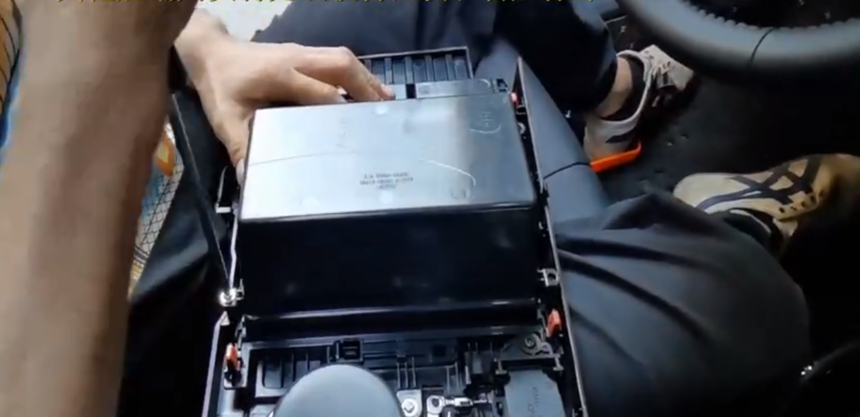

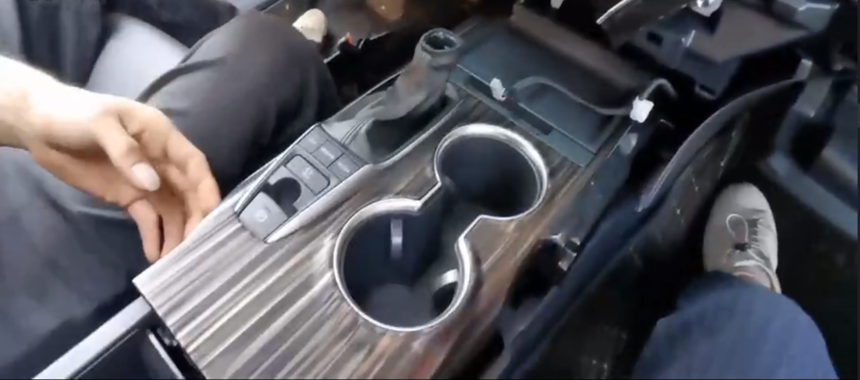

4. Lift the gear panel and remove the rubber shell

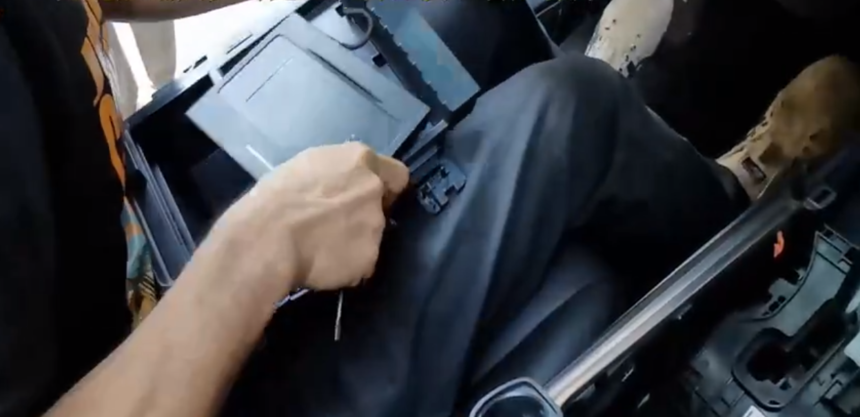

5. Disassemble the structure above the panel

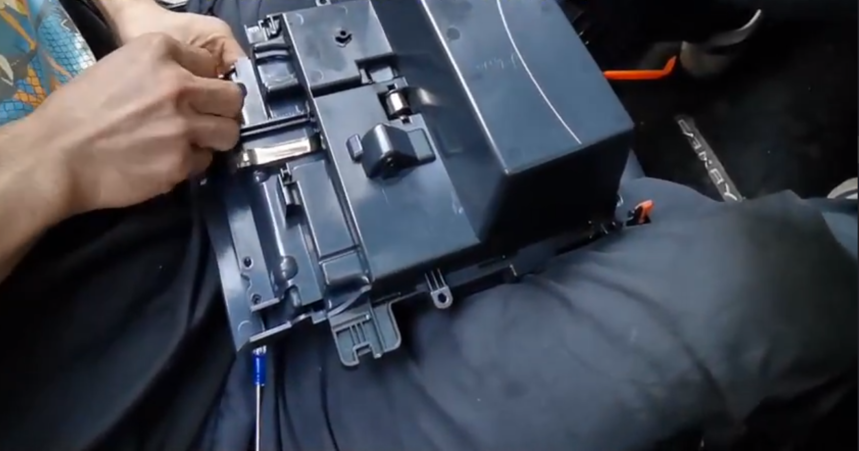

6. Unscrew the screws at the bottom of the gear panel assembly

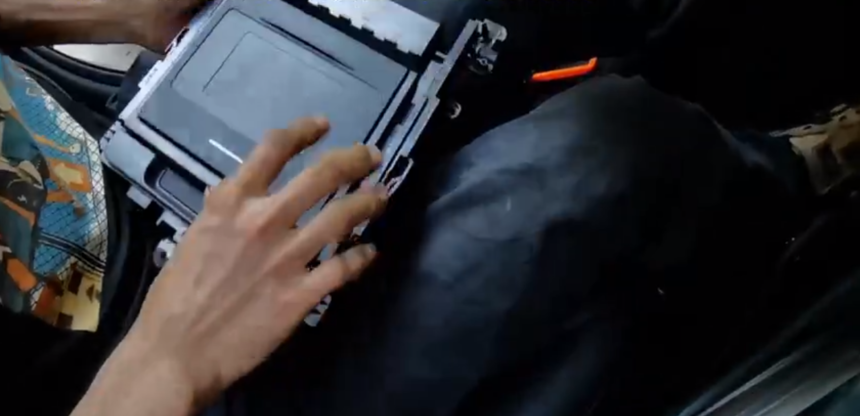

7. Install the special wireless charger for Camry special car to the storage box position, and do the wiring work, and press the bottom button at the same time

8. Turn back the fixing screw and reset the assembly

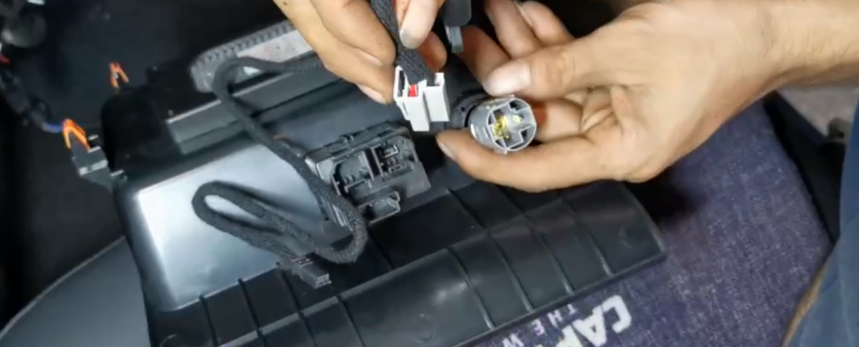

9. Connect the original car's cigarette lighter with special car wiring harness

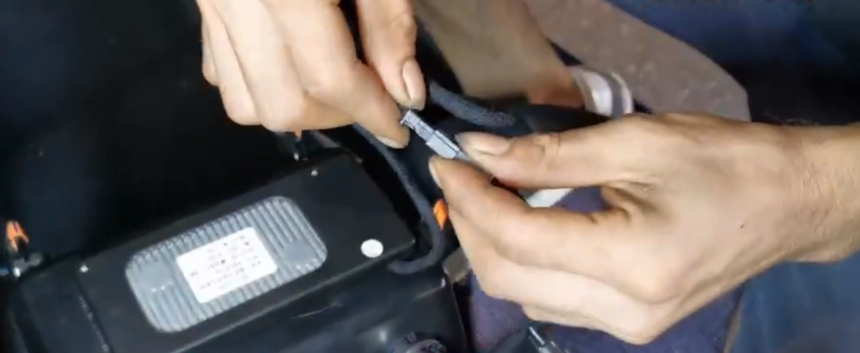

10. Connect the charging module line and the dedicated car line

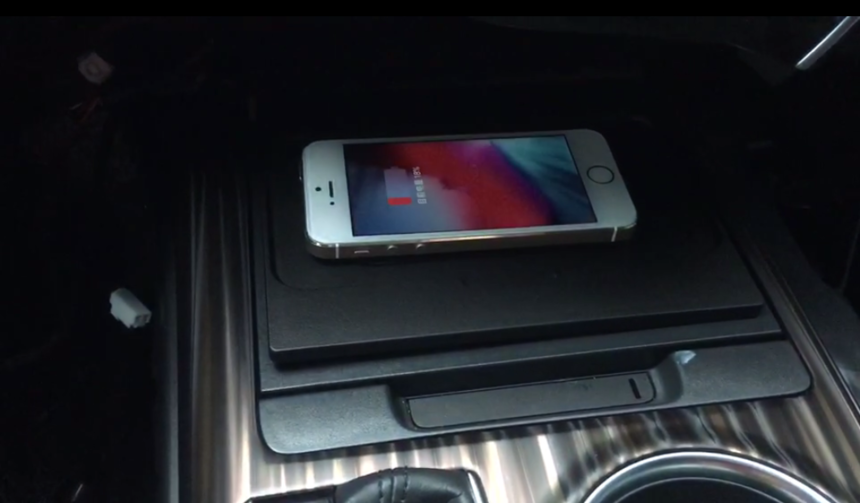

11. Reset according to the original and realize fast wireless charging
