BMW's old 3 series wireless charging board installation plan

BMW's old 3 series wireless charging board installation plan

The 2016-2019 BMW 3 Series is the best-selling model among BMW models, and is loved by young car owners. In order to solve the wireless charging troubles of the country's owners, our company has already started to develop wireless charging boards in the early days.

1. Modification purpose

In 2017, BMW 5 Series high-end equipped with its own wireless charger, resulting in BMW owners on the market is the highest access to the original car has wireless charging information, in order to protect the interests of the majority of owners, our company took the lead in developing BMW 3 Series 16-19 models.

2. Modification method

Replace the original car storage mat and use a new wireless charging board to solve the problem of mobile phone wireless charging.

3. experience purpose

Quickly charge wireless charging mobile phones, and the charging efficiency is higher than that of the original 5 series.

4. modification steps

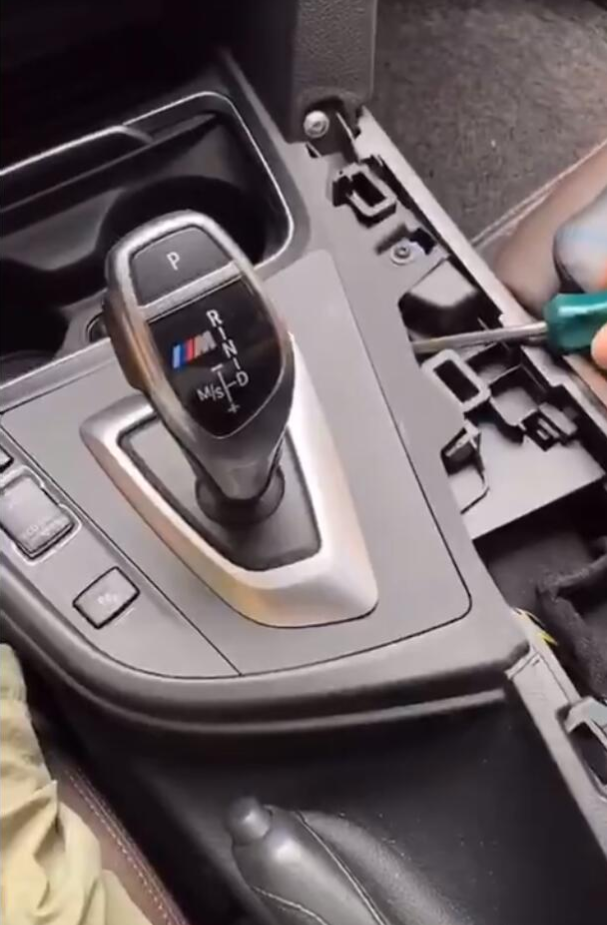

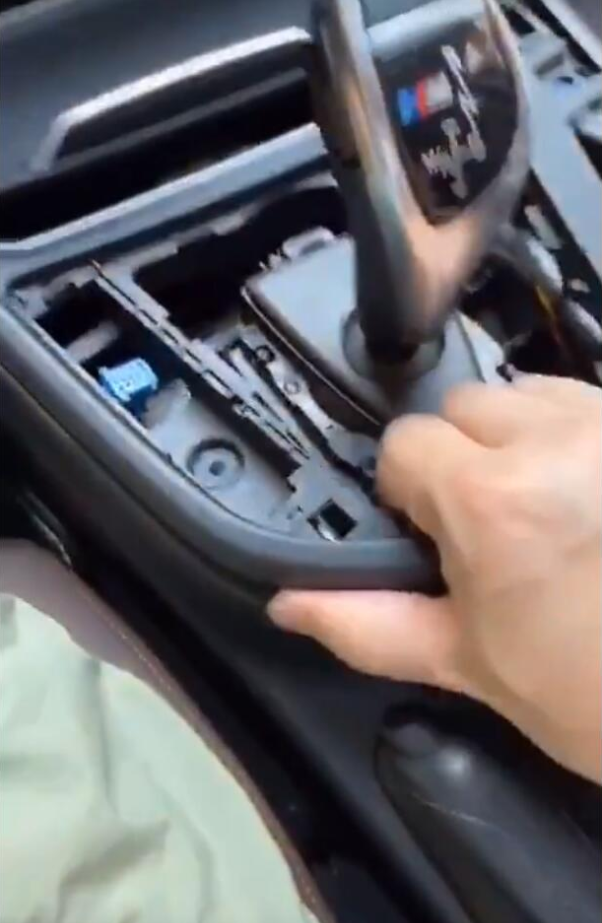

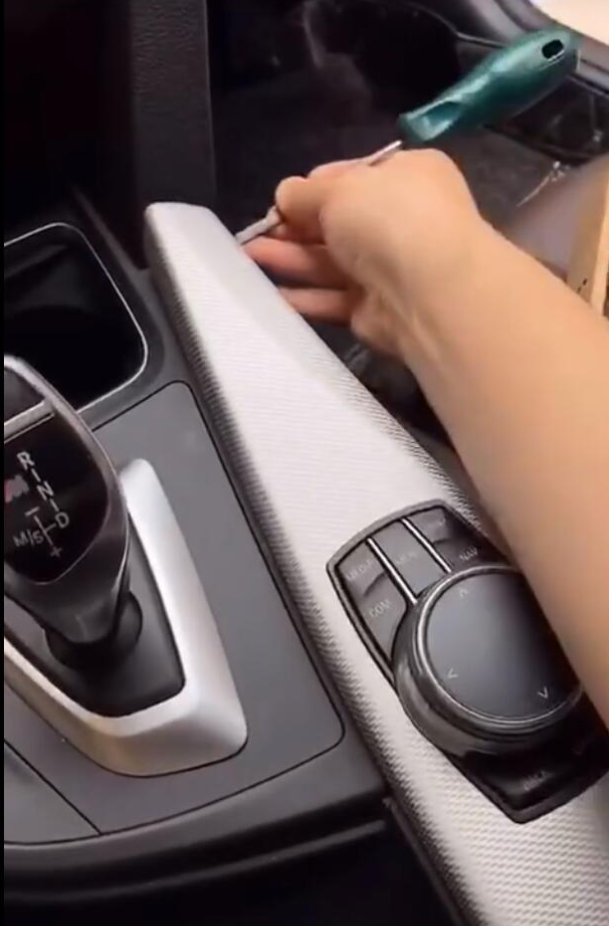

1. Start the right side panel of the original car

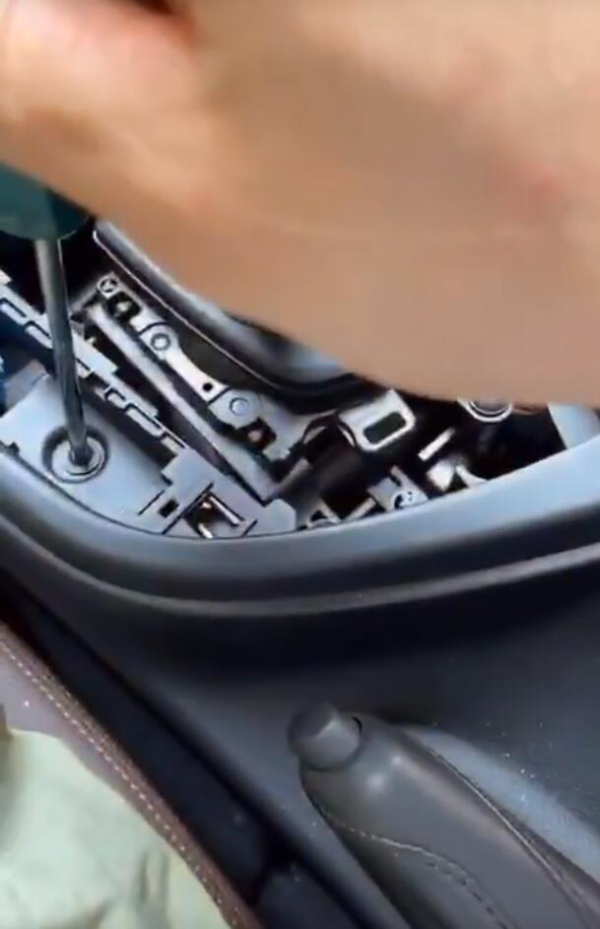

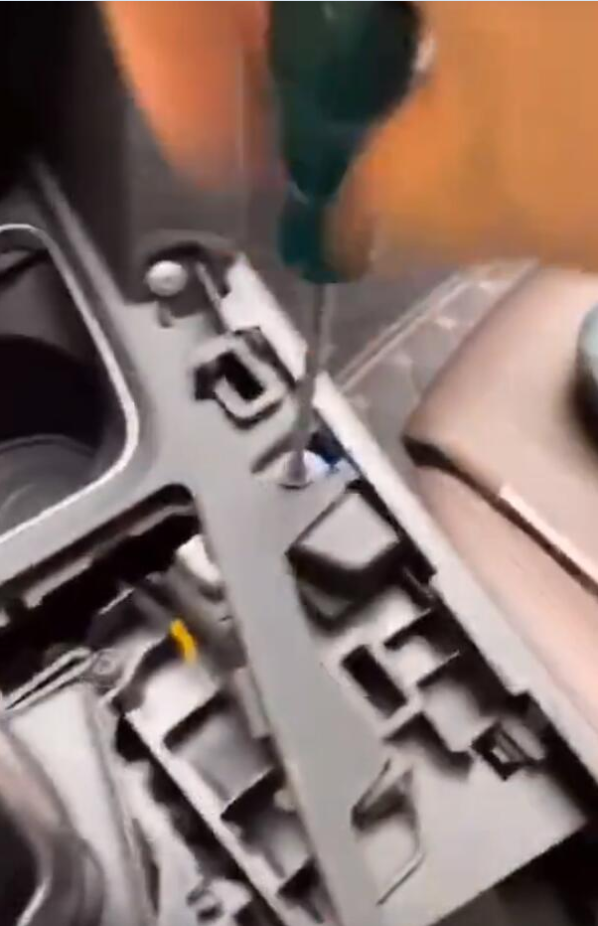

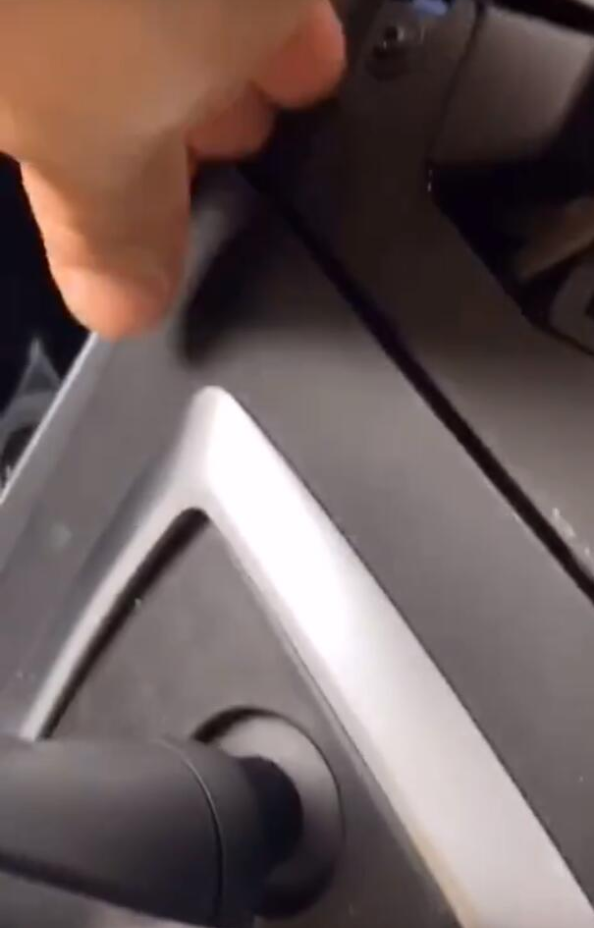

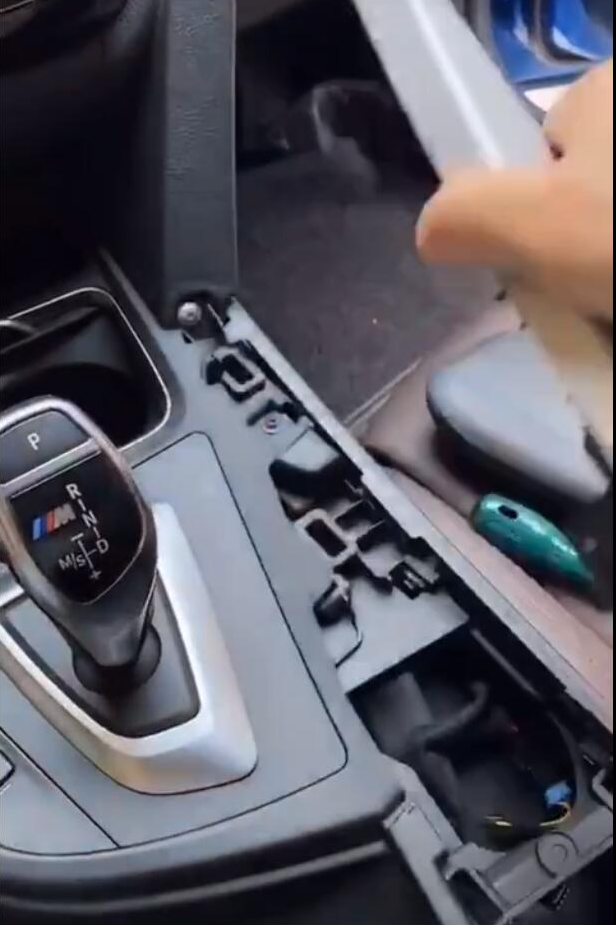

2. Unscrew the screws and remove the entire panel

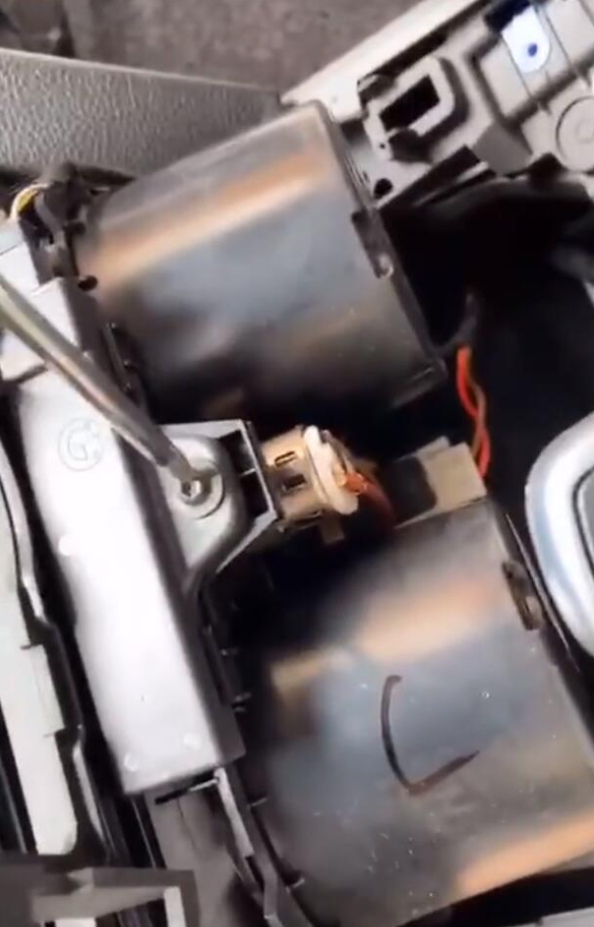

3. Unscrew the screw of the cup holder assembly and remove the cup holder assembly

4. Unscrew the cigarette lighter fixing screw

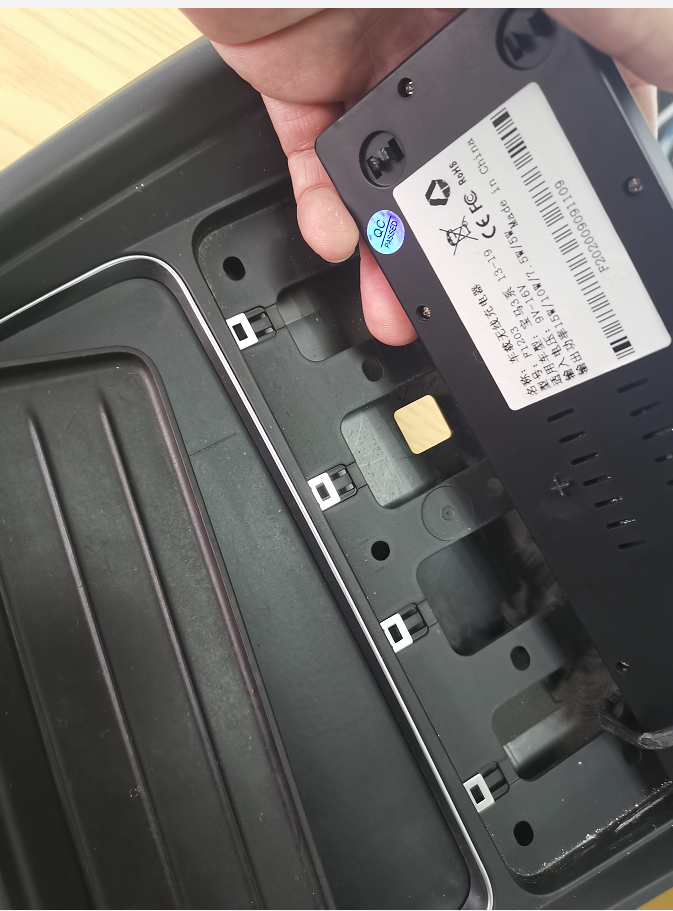

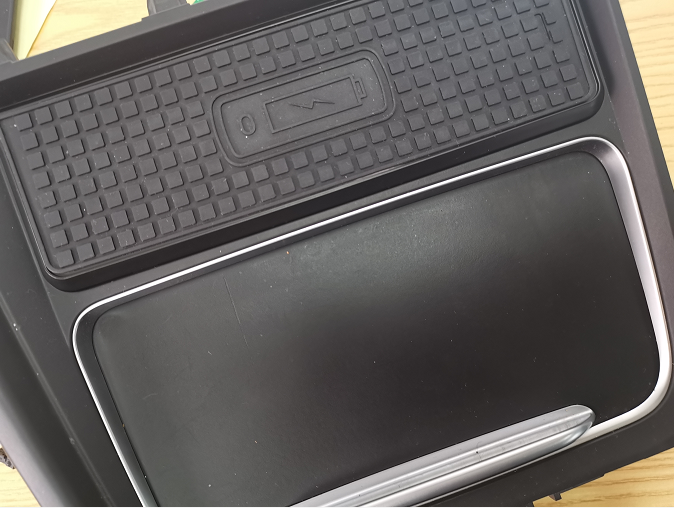

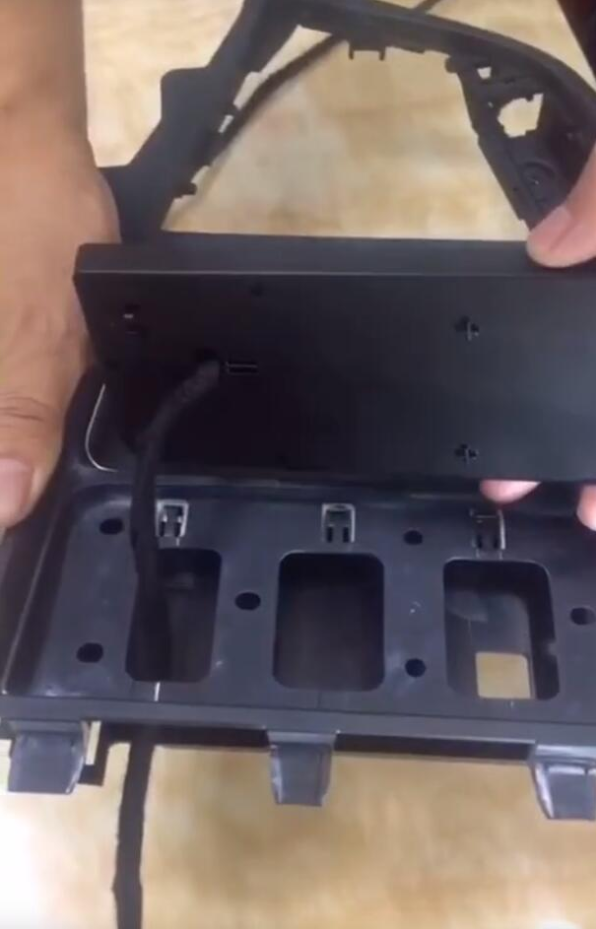

5. Take out the original car leather pad, add the wireless charging board to the leather pad position, and replace the leather pad

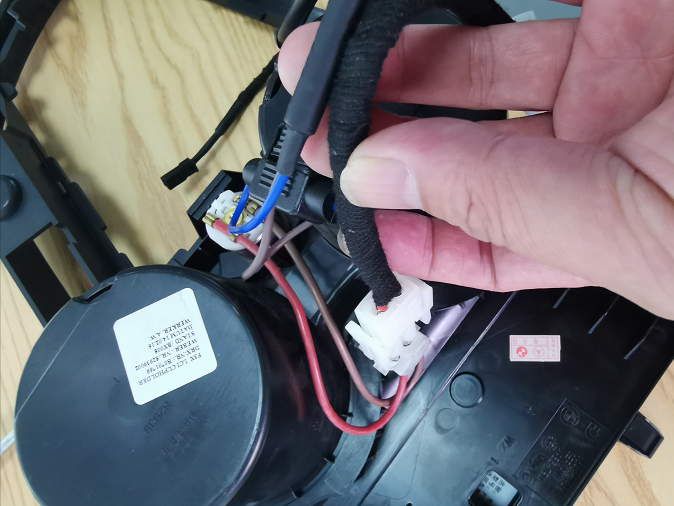

6. Use the matching cable provided by the product to directly connect without damage, use the sub-head to connect the original car cigarette lighter female, and the other end is the same.

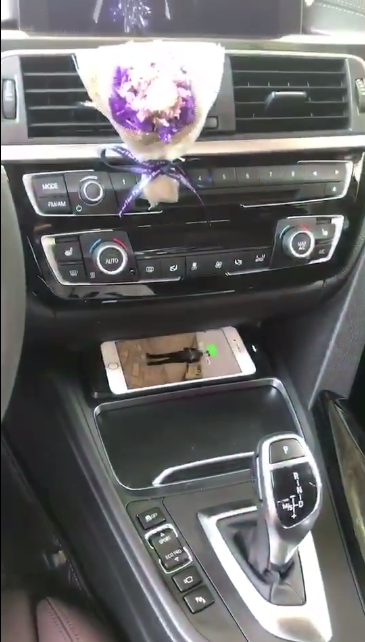

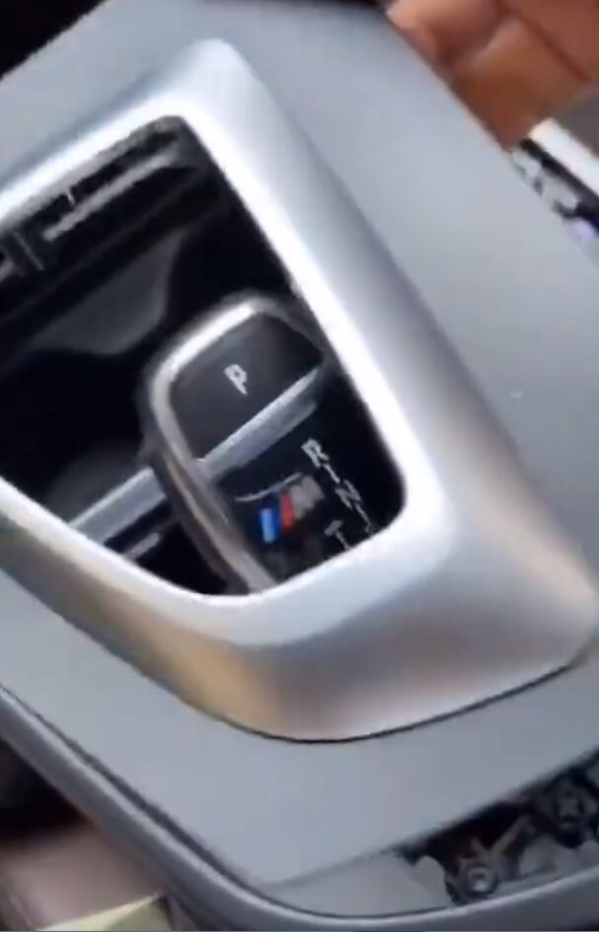

7. Reset the original path of the components to realize fast wireless charging of the mobile phone
