Toyota's New RAV4

Toyota's new RAV4 storage box modification plan

ONE. The purpose of program development：

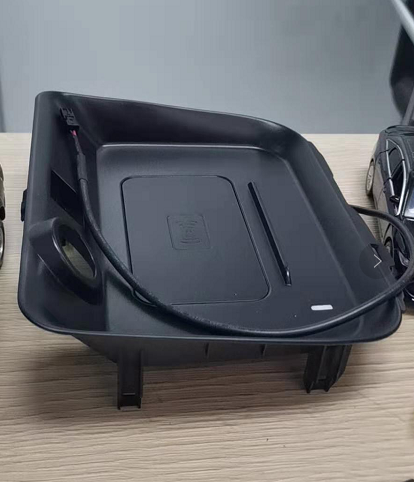

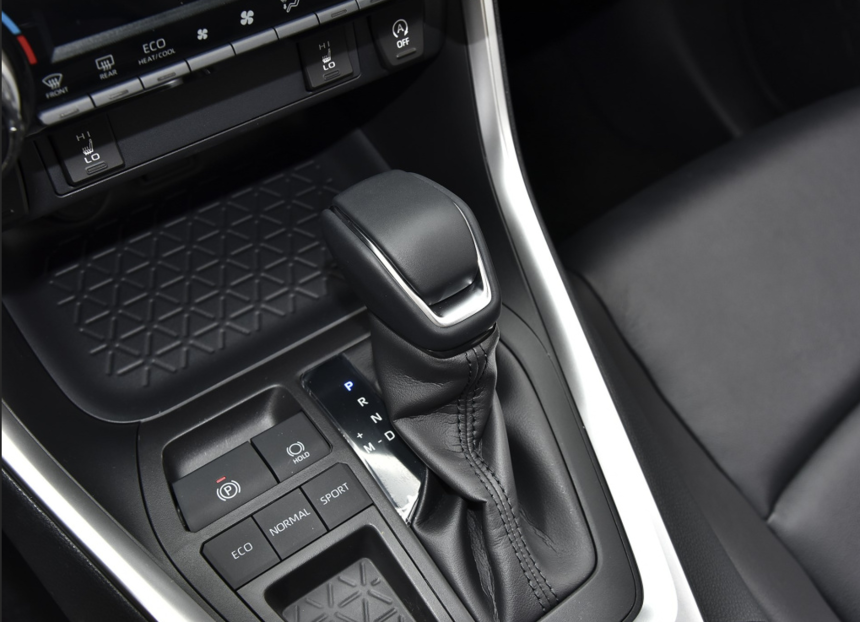

The storage box of the original car of this model was originally used for the mobile phone placement function. When the style of the original car is not damaged, a storage device with wireless charging products is designed, which not only solves the problem of mobile phone charging, but also does not damage the original car.

Two. disassembly method

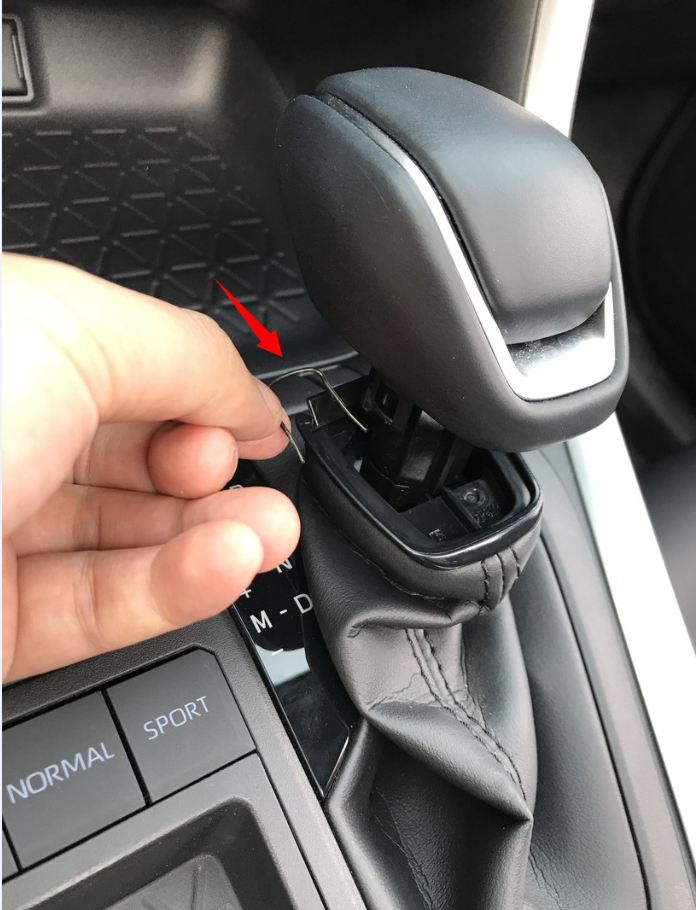

1. Remove the gear knob. This is simple. Just pry the circlip as shown by the arrow.

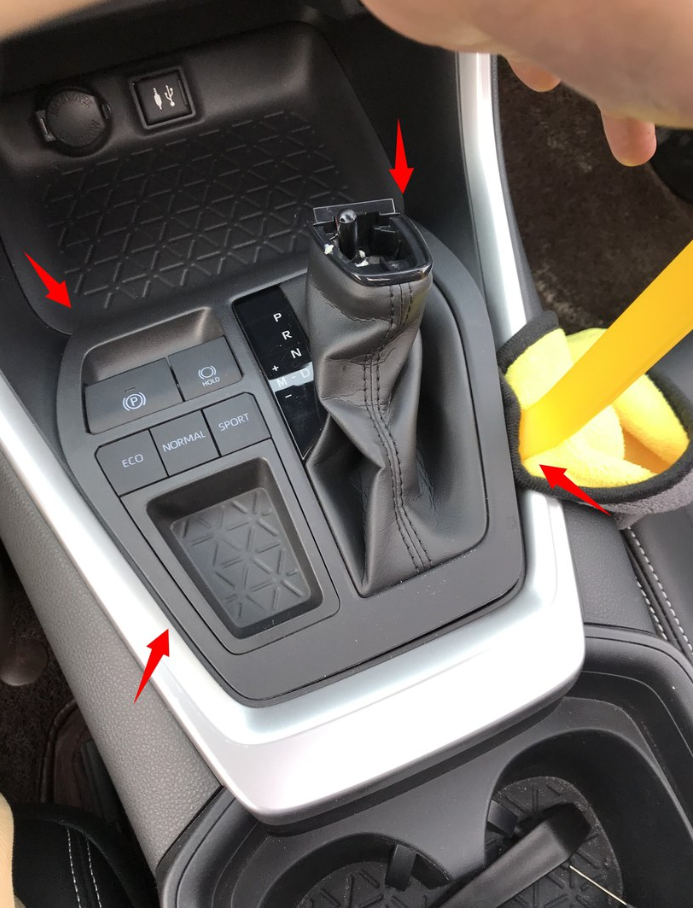

2. The panel will start to be dismantled when the handle is removed. From  to , press the arrow as indicated by the word "pry". If you are afraid of getting the interior trim, you can use a piece of cloth to cushion it. It's very simple.

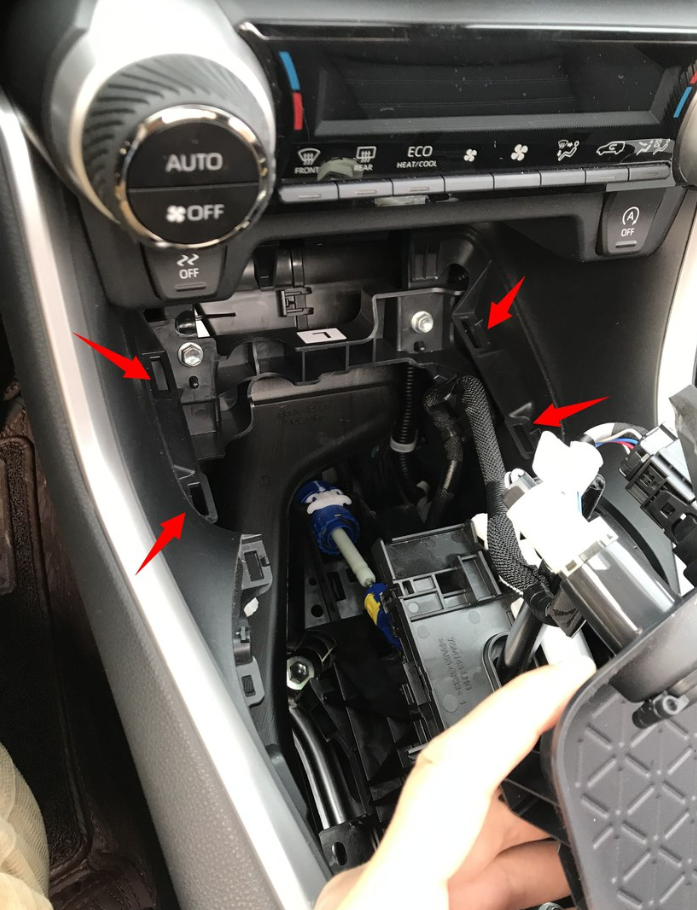

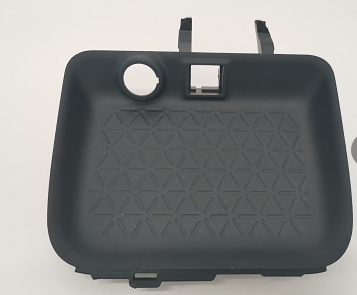

3. Pull out the original car storage slot, four buckles, you can take it with a little force

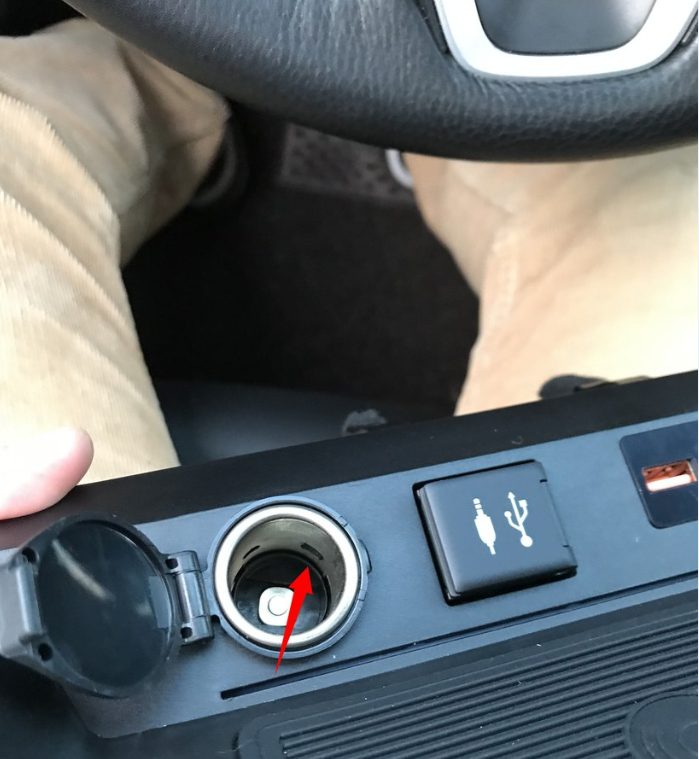

4. Unplug the cigarette lighter plug and the USB plug from the original storage slot, and then replace the cigarette lighter and USB socket to the wireless panel . Here is a reminder that the USB plug can be directly pushed out. The metal core of the cigarette lighter must be taken out before the outer shell of the cigarette lighter can be removed. The arrow points to the metal core of the cigarette lighter. It's so fun, it took me a few minutes

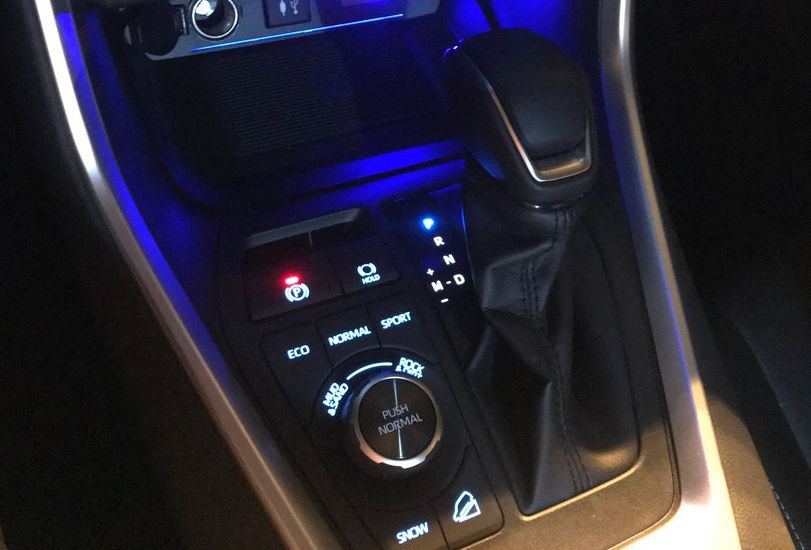

5. After docking the original car harness, just reset it directly
