BMW old 5 series F18 cup holder modification plan

BMW Old 5series F18 Holder Cup Modification Plan

The following is the disassembly and assembly plan of the old BMW F18 5 series

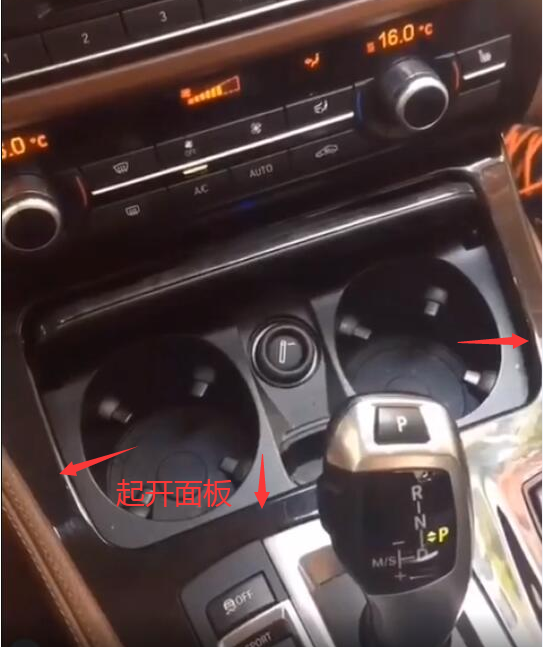

1. Hang the gear to N gear and open the panel

2.Remove the Original Cup Holder of the Car

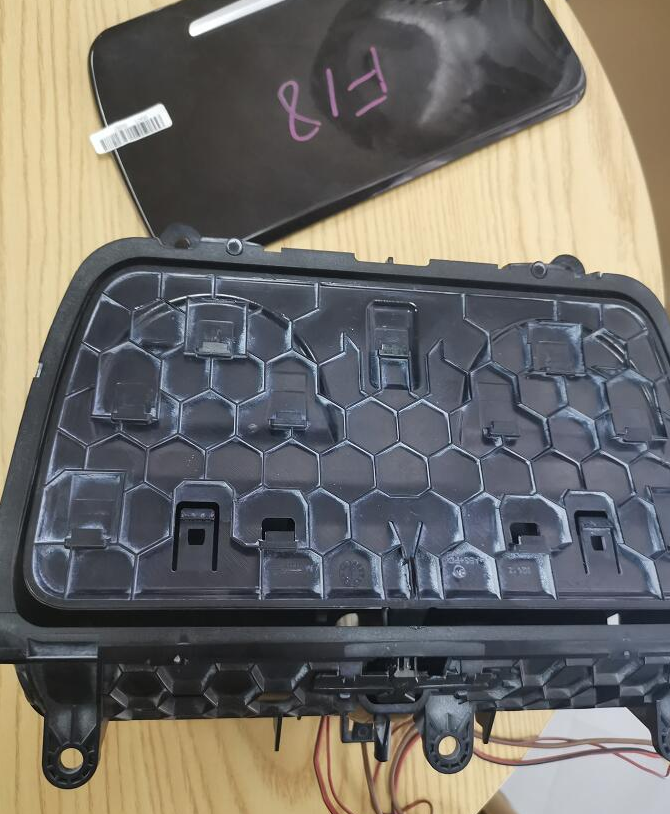

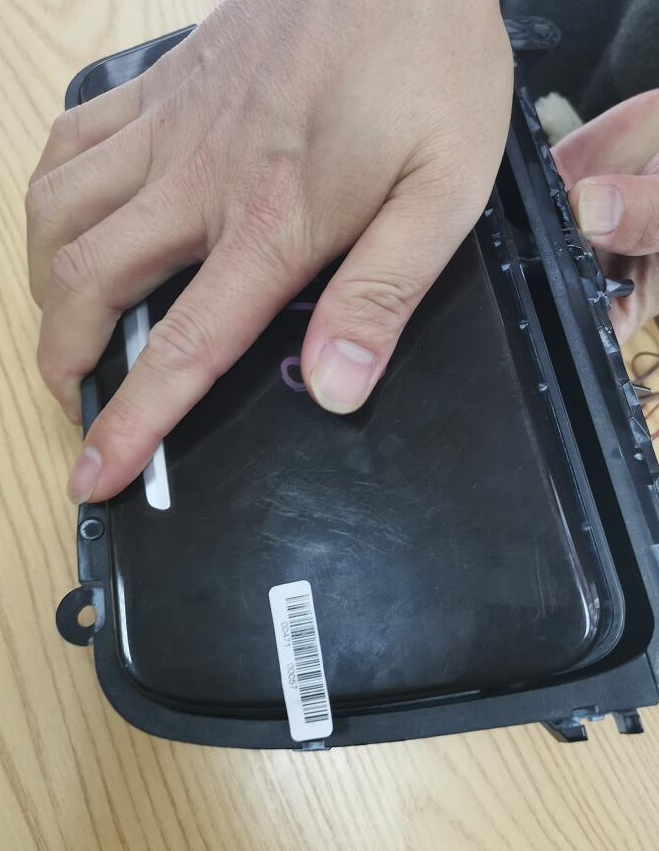

3.Push out the upper cover in the direction of the decorative slip,and remove the upper holder for replacement

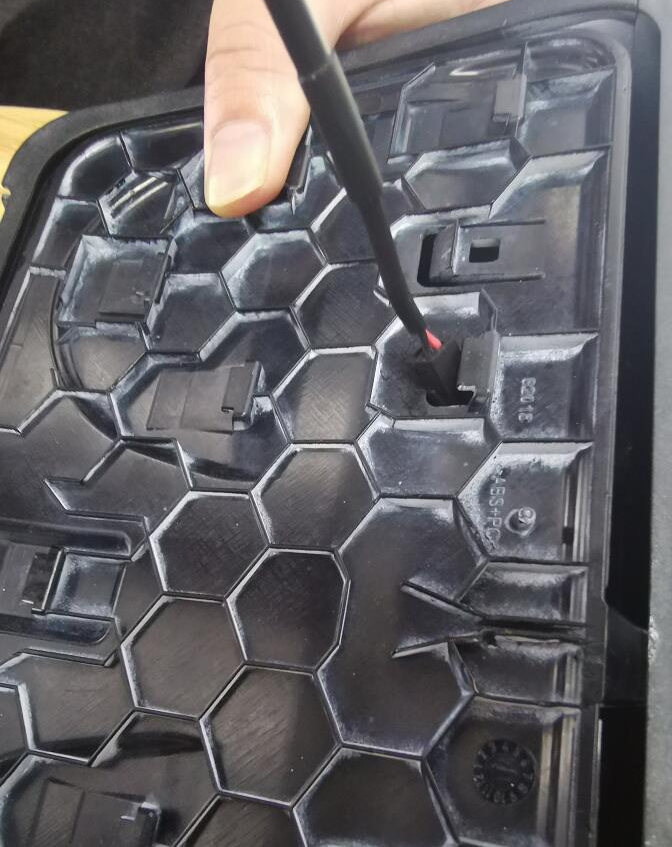

4.Insert the lead wire of the wireless charging panel to the left upper hole,and drag it out from the bottom position to embed the wire. Note: the routing is directional.

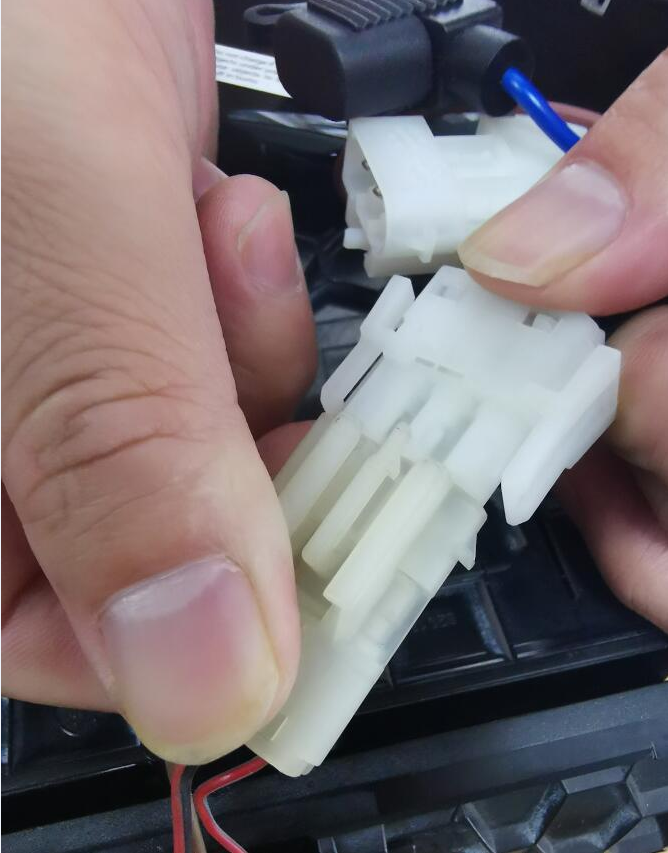

5. Connect the plastic shell of the special line (without broken wires) for product distribution to the plastic shell pulled out from the back of the original car's cigarette lighter, and connect the other end to the original cigarette lighter wiring butt plastic shell.

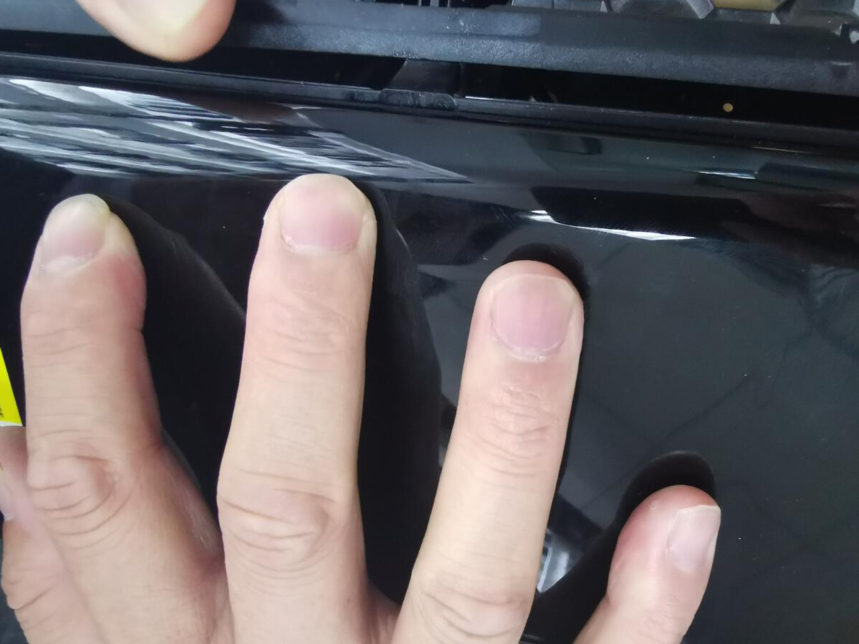

6. Press down the wireless charging panel forcefully in the direction of the line. It is recommended to press the cover forcefully at a 45 degree angle.

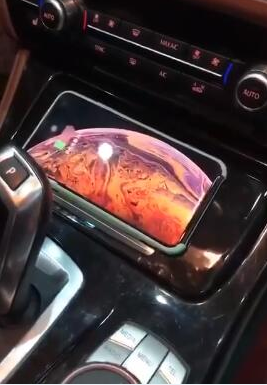

7. Realize of the goal of wireless fast charging perfectly
